MCP7940NT-I/SN

MCP7940NT-I/SN Overview

Product belongs to the - series. This product is categorized as Real Time Clocks Type: Clock/Calendar Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Alarm Calendar Clock. Interface: I2C, 2-Wire Serial Voltage Supply Range: 1.8 V ~ 5.5 V Supplier device package: 8-SOIC This product comes with a 64B memory size. This product uses a HH:MM:SS (12/24 hr) time format. The product uses a YY-MM-DD-dd date format. Voltage supply range from 1.3 V ~ 5.5 V The Current-Timekeeping-Max for this product is 1.2μA @ 3.3V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product does not have Backup Switching capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V This product uses an 2-Wire I2C interface for RTC bus communication. This product features an 64 B of 256 kB for reliable real-time clock functionality.

MCP7940NT-I/SN Image

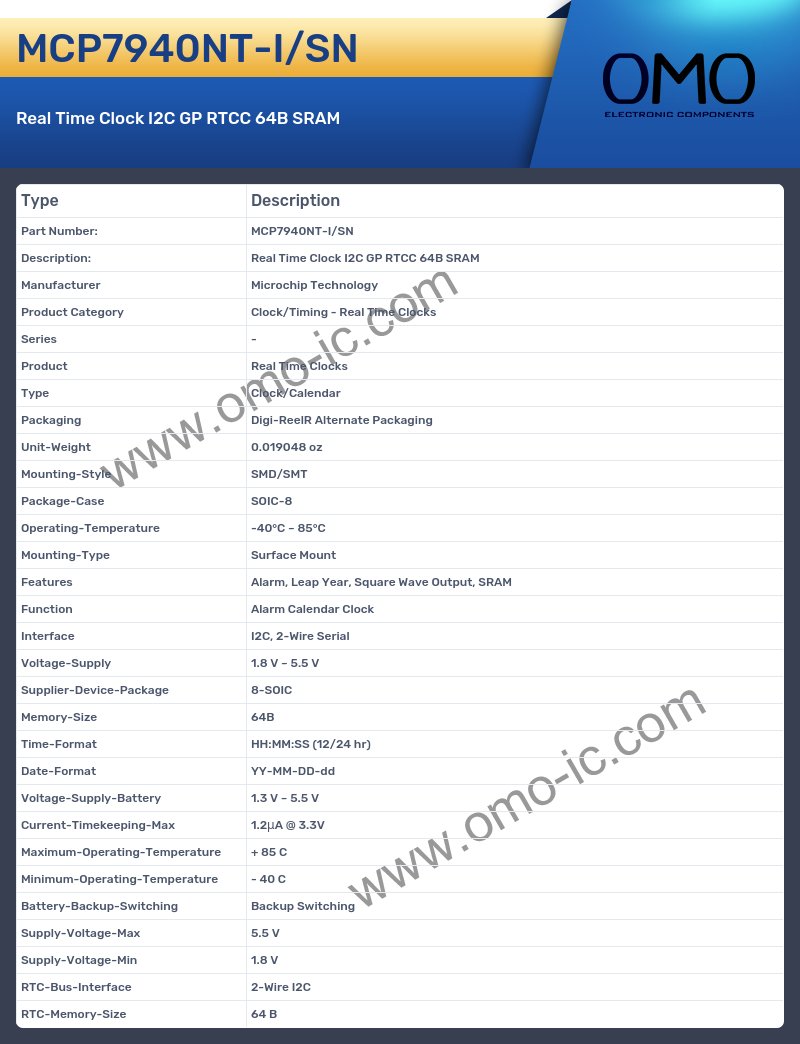

MCP7940NT-I/SN Specifications

• Manufacturer Microchip Technology
• Product Category Clock/Timing - Real Time Clocks
• Series -
• Product Real Time Clocks
• Type Clock/Calendar
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Alarm, Leap Year, Square Wave Output, SRAM
• Function Alarm Calendar Clock
• Interface I2C, 2-Wire Serial
• Voltage-Supply 1.8 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Memory-Size 64B
• Time-Format HH:MM:SS (12/24 hr)
• Date-Format YY-MM-DD-dd
• Voltage-Supply-Battery 1.3 V ~ 5.5 V
• Current-Timekeeping-Max 1.2μA @ 3.3V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Battery-Backup-Switching Backup Switching
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• RTC-Bus-Interface 2-Wire I2C
• RTC-Memory-Size 64 B
