MRF24XA-I/MQ

MRF24XA-I/MQ Overview

Product belongs to the MRF24XA series. Type: TxRx + MCU Tube is the packaging method for this product Weight of 0.006653 oz SMD/SMT Mounting-Style QFN-32 This product's 2.4GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 2.405 GHz to 2.48 GHz Sensitivity: -103dBm Voltage Supply Range: 1.5 V ~ 3.6 V This product comes with a - memory size. Data rate maximum is 2Mbps . Serial Interfaces: SPI 1dBm Current receiving is 13.5mA ~ 16.5mA 802.15.4, General ISM > 1GHz is the RF family standard. DSSS, O-QPSK modulated The device has 3 GPIOs. 30mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.2 V supply voltage for reliable performance. 4-Wire SPI interface type Maximum data rate is 2000 kb/s Maximum supply voltage of 1.32 V Minimum supply voltage is 1.08 V The product has 1 receivers. 802.15.4 are the supported modulation formats. The number of transmitters is 1.

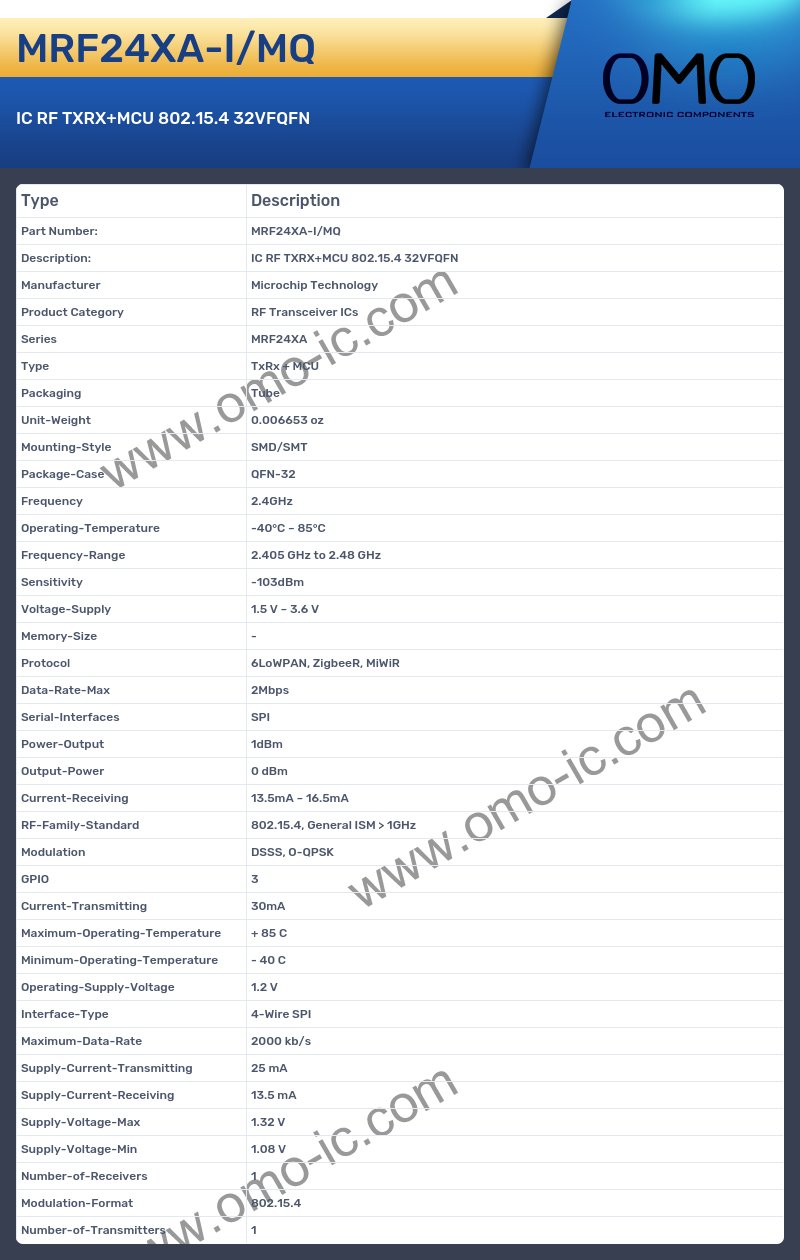

MRF24XA-I/MQ Image

MRF24XA-I/MQ Specifications

• Manufacturer Microchip Technology
• Product Category RF Transceiver ICs
• Series MRF24XA
• Type TxRx + MCU
• Packaging Tube
• Unit-Weight 0.006653 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-32
• Frequency 2.4GHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 2.405 GHz to 2.48 GHz
• Sensitivity -103dBm
• Voltage-Supply 1.5 V ~ 3.6 V
• Memory-Size -
• Protocol 6LoWPAN, ZigbeeR, MiWiR
• Data-Rate-Max 2Mbps
• Serial-Interfaces SPI
• Power-Output 1dBm
• Output-Power 0 dBm
• Current-Receiving 13.5mA ~ 16.5mA
• RF-Family-Standard 802.15.4, General ISM > 1GHz
• Modulation DSSS, O-QPSK
• GPIO 3
• Current-Transmitting 30mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.2 V
• Interface-Type 4-Wire SPI
• Maximum-Data-Rate 2000 kb/s
• Supply-Current-Transmitting 25 mA
• Supply-Current-Receiving 13.5 mA
• Supply-Voltage-Max 1.32 V
• Supply-Voltage-Min 1.08 V
• Number-of-Receivers 1
• Modulation-Format 802.15.4
• Number-of-Transmitters 1
