MSP430F5437IPNR

MSP430F5437IPNR Overview

Product belongs to the MSP430F5xx series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.016427 oz SMD/SMT Mounting-Style Trade name: MSP430. LQFP-80 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 80-LQFP (12x12) This product has 67 I/O ports for versatile connectivity. Operating frequency: 18MHz Program memory type: FLASH I2C, IrDA, LIN, SCI, SPI, UART/USART interface Supply Voltage: 2.2 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. I2C IrDA SPI UART interface type Processor Core: MSP430 This product is powered by the Series 5 Processor-Series, providing high performance and efficiency. This product is also known as MSP430A082IPNR and can be referred to by either part number. The 16 bit. Maximum clock frequency of 25 MHz Number of ADC Channels: 16 This product has 67 I/O connections. This product has a 16 kB data RAM size, providing ample storage for complex applications. This product features 3 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion.

MSP430F5437IPNR Image

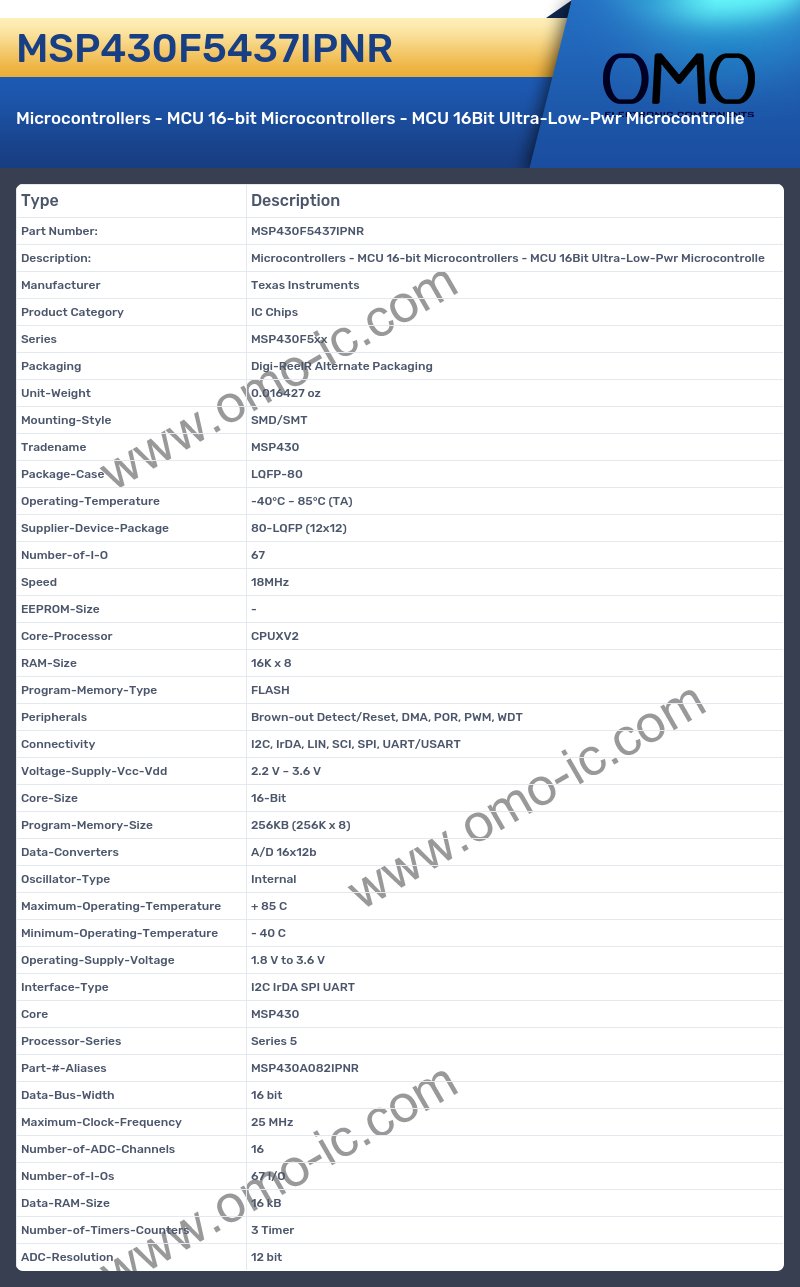

MSP430F5437IPNR Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series MSP430F5xx
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.016427 oz
• Mounting-Style SMD/SMT
• Tradename MSP430
• Package-Case LQFP-80
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 80-LQFP (12x12)
• Number-of-I-O 67
• Speed 18MHz
• EEPROM-Size -
• Core-Processor CPUXV2
• RAM-Size 16K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SCI, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.2 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 256KB (256K x 8)
• Data-Converters A/D 16x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type I2C IrDA SPI UART
• Core MSP430
• Processor-Series Series 5
• Part-#-Aliases MSP430A082IPNR
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 25 MHz
• Number-of-ADC-Channels 16
• Number-of-I-Os 67 I/O
• Data-RAM-Size 16 kB
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 12 bit
