NE556D

NE556D Overview

Product belongs to the NE556 series. Type: 555 Type, Timer/Oscillator (Dual) Tube is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 This product's 500kHz range is 0Hz to 2.2GHz. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 16 V Supplier device package: 14-SO This product has a 20mA of 200μA. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 4000 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 4.5 V High-Level-Output-Current of 200 mA - 200 mA low-level output current 2 Timer Internal Timers

NE556D Image

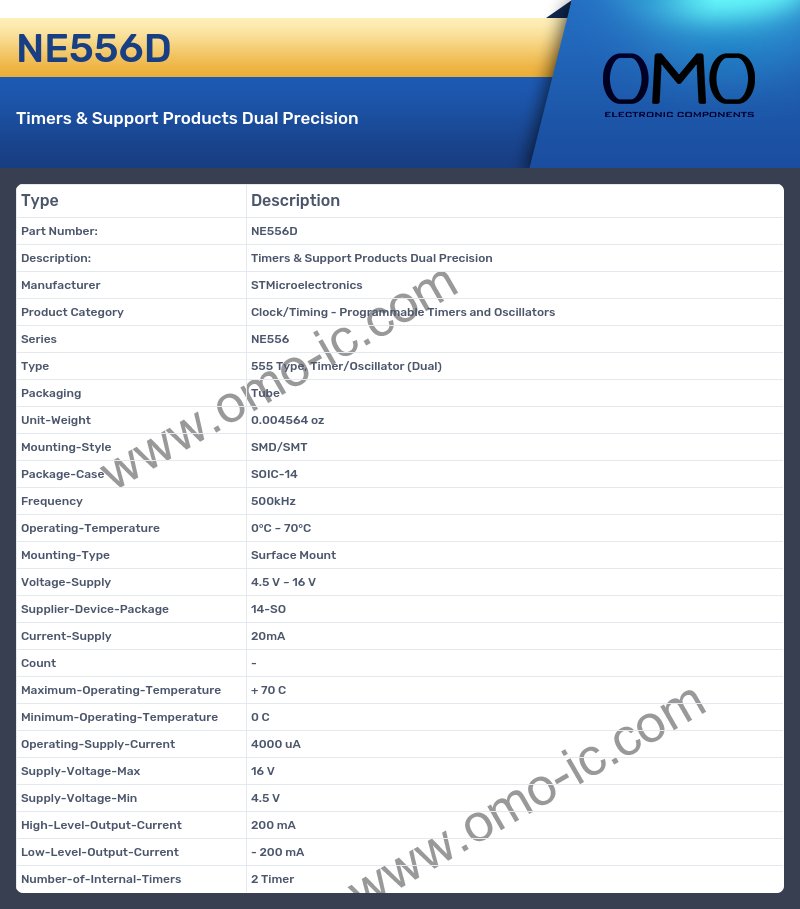

NE556D Specifications

• Manufacturer STMicroelectronics
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series NE556
• Type 555 Type, Timer/Oscillator (Dual)
• Packaging Tube
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Frequency 500kHz
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.5 V ~ 16 V
• Supplier-Device-Package 14-SO
• Current-Supply 20mA
• Count -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 4000 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4.5 V
• High-Level-Output-Current 200 mA
• Low-Level-Output-Current - 200 mA
• Number-of-Internal-Timers 2 Timer
