PCA9306DCUT Overview

Product belongs to the PCA9306 series. Type: Voltage Level Translators Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000339 oz SMD/SMT Mounting-Style VSSOP-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Drain, Push-Pull Supplier device package: US8 1 is 8. This product uses Voltage Level as the translator type This product's Bidirectional 2 Channels The product is designed to operate at 1.2 V ~ 3.3 V. The Voltage-VCCB is set at 1.8 V ~ 5.5 V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.2 V 1.2 ns is 23 microseconds.

PCA9306DCUT Image

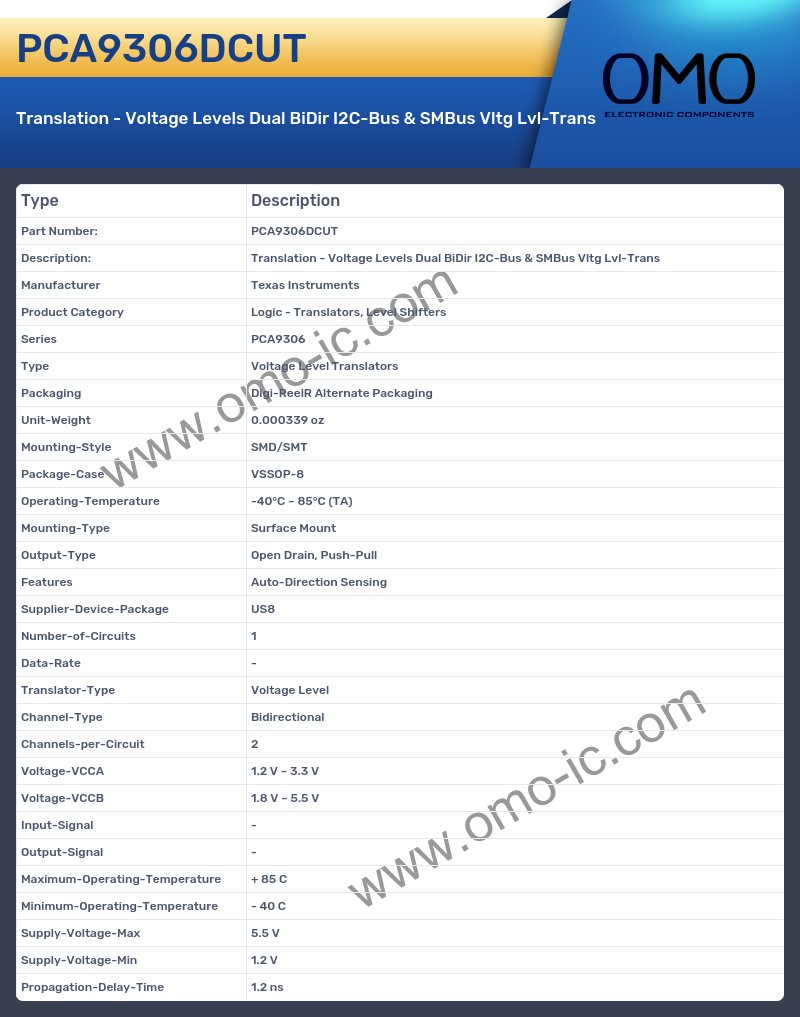

PCA9306DCUT Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Translators, Level Shifters
• Series PCA9306
• Type Voltage Level Translators
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000339 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Drain, Push-Pull
• Features Auto-Direction Sensing
• Supplier-Device-Package US8
• Number-of-Circuits 1
• Data-Rate -
• Translator-Type Voltage Level
• Channel-Type Bidirectional
• Channels-per-Circuit 2
• Voltage-VCCA 1.2 V ~ 3.3 V
• Voltage-VCCB 1.8 V ~ 5.5 V
• Input-Signal -
• Output-Signal -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.2 V
• Propagation-Delay-Time 1.2 ns
