PT4472C

PT4472C Overview

Product belongs to the Excalibur PT4472 series. Type: Isolated Module Tray is the packaging method for this product 26-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 30A of 50mA for efficient power management. The minimum input voltage is 18V. The 36V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 1.3 ~ 3.5 V output voltage

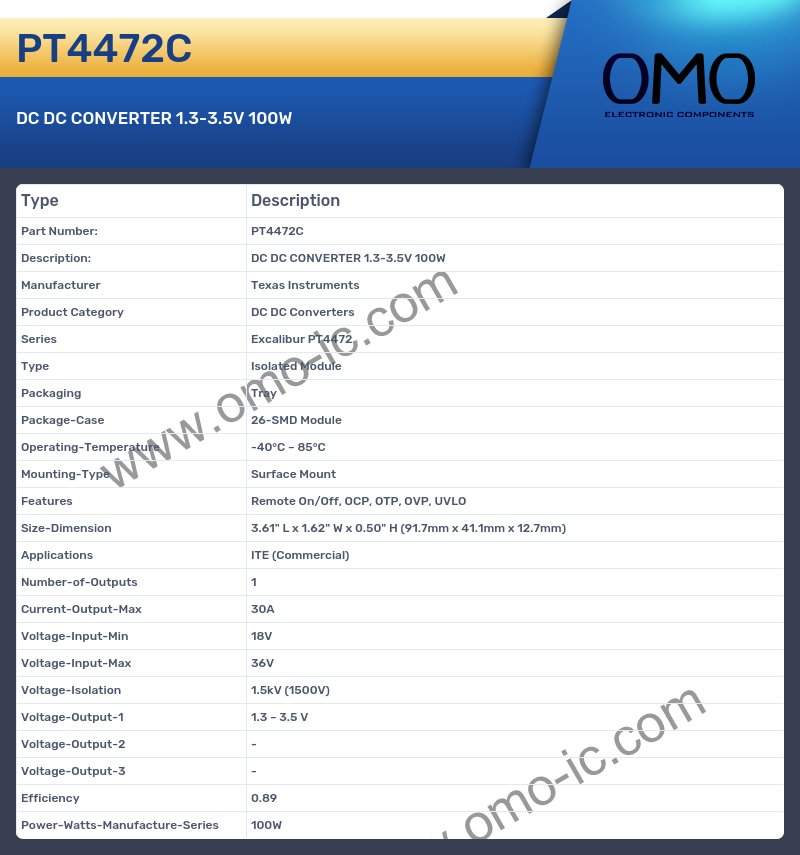

PT4472C Image

PT4472C Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT4472
• Type Isolated Module
• Packaging Tray
• Package-Case 26-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, OCP, OTP, OVP, UVLO
• Size-Dimension 3.61" L x 1.62" W x 0.50" H (91.7mm x 41.1mm x 12.7mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 30A
• Voltage-Input-Min 18V
• Voltage-Input-Max 36V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 1.3 ~ 3.5 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.89
• Power-Watts-Manufacture-Series 100W
