| Mfr. #: | SI8220BD-D-IS |
|---|---|
| Hersteller: | Silicon Labs |
| Beschreibung: | Gate Drivers 5.0kV 2.5A Opto Input ISOdrive |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | SI8220BD-D-IS Datenblatt |
Product belongs to the Automotive, AEC-Q100 series. This product is categorized as MOSFET Gate Drivers Type: Isolated Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.017932 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 1 Voltage Supply Range: 9.4 V ~ 24 V Supplier device package: 16-SOIC Configuration Single Number-of-Outputs: 1 Output The product's 2.5A is 4A. This product is designed with 5000Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Minimum 30kV/μs (Typ) of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 60ns, 40ns The minimum pulse width distortion is -. Power-off control: 1.2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 20 mA is 92 nA. Output current: 2.5 A This product has a 30 ns of 16 ns. This product has a 30 ns of 16 ns. Maximum supply voltage of 24 V Minimum supply voltage is 6.5 V Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 40 ns. 60 ns maximum turn-on delay time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

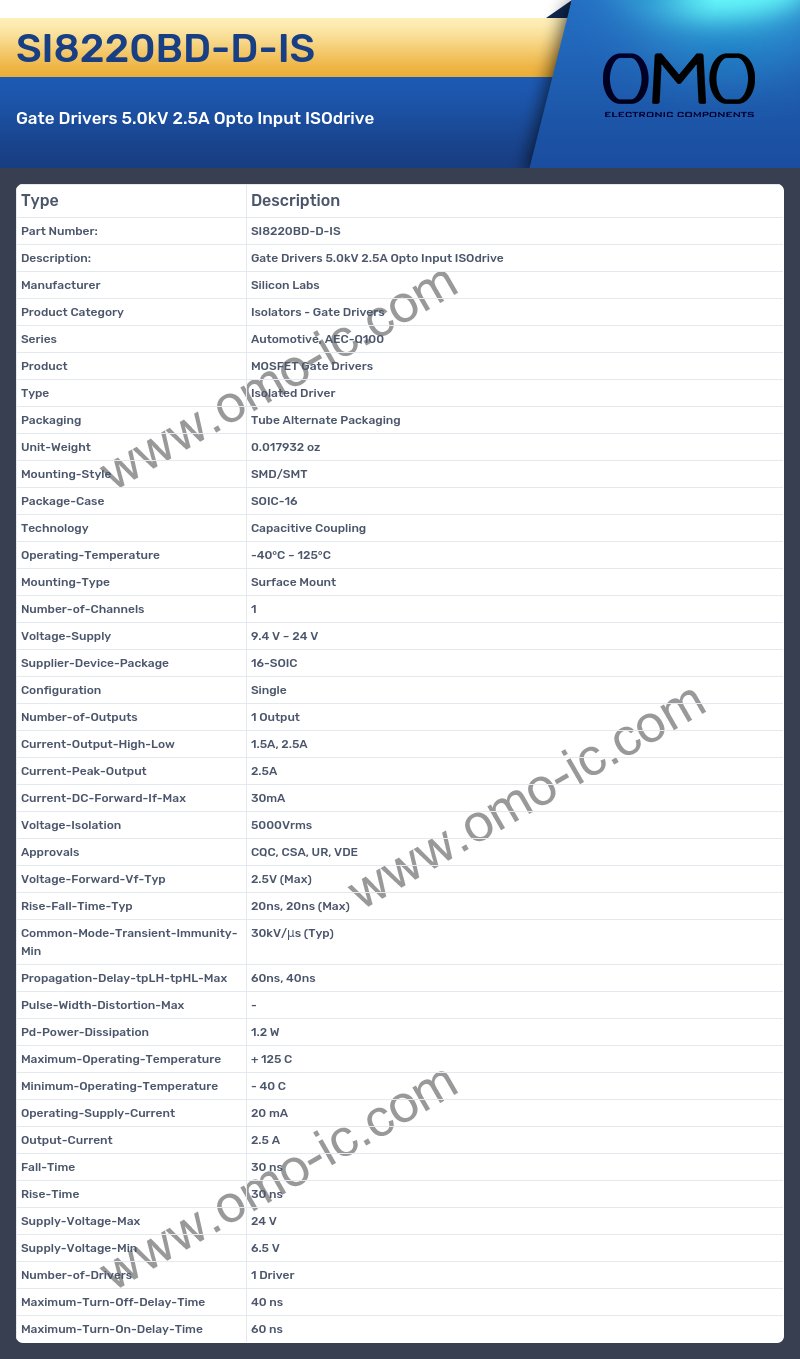

SI8220BD-D-IS Specifications
A: At what frequency does the Series?
Q: The product Series is Automotive, AEC-Q100.
A: What is the Product of the product?
Q: The Product of the product is MOSFET Gate Drivers.
A: What is the Type of the product?
Q: The Type of the product is Isolated Driver.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.017932 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-16
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Capacitive Coupling
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 125°C
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1.
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 9.4 V ~ 24 V
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-SOIC.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 1 Output.
A: Is the cutoff frequency of the product Current-Peak-Output?
Q: Yes, the product's Current-Peak-Output is indeed 2.5A
A: At what frequency does the Voltage-Isolation?
Q: The product Voltage-Isolation is 5000Vrms.
A: At what frequency does the Approvals?
Q: The product Approvals is CQC, CSA, UR, VDE.
A: What is the Common-Mode-Transient-Immunity-Min of the product?
Q: The Common-Mode-Transient-Immunity-Min of the product is 30kV/μs (Typ).
A: Is the cutoff frequency of the product Propagation-Delay-tpLH-tpHL-Max?
Q: Yes, the product's Propagation-Delay-tpLH-tpHL-Max is indeed 60ns, 40ns
A: Is the cutoff frequency of the product Pulse-Width-Distortion-Max?
Q: Yes, the product's Pulse-Width-Distortion-Max is indeed -
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 1.2 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 20 mA.
A: At what frequency does the Output-Current?
Q: The product Output-Current is 2.5 A.
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 30 ns
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 30 ns.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 24 V.
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 6.5 V
A: At what frequency does the Number-of-Drivers?
Q: The product Number-of-Drivers is 1 Driver.
A: At what frequency does the Maximum-Turn-Off-Delay-Time?
Q: The product Maximum-Turn-Off-Delay-Time is 40 ns.
A: Is the cutoff frequency of the product Maximum-Turn-On-Delay-Time?
Q: Yes, the product's Maximum-Turn-On-Delay-Time is indeed 60 ns
