SI8230AD-D-IS

SI8230AD-D-IS Overview

Product belongs to the Automotive, AEC-Q100 series. Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.295", 7.50mm Width) Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 2 Voltage Supply Range: 6.5 V ~ 24 V Supplier device package: 16-SOIC The product's 500mA is 4A. This product is designed with 5000Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Minimum 20kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 60ns, 60ns The minimum pulse width distortion is 5.6ns.

SI8230AD-D-IS Image

SI8230AD-D-IS Specifications

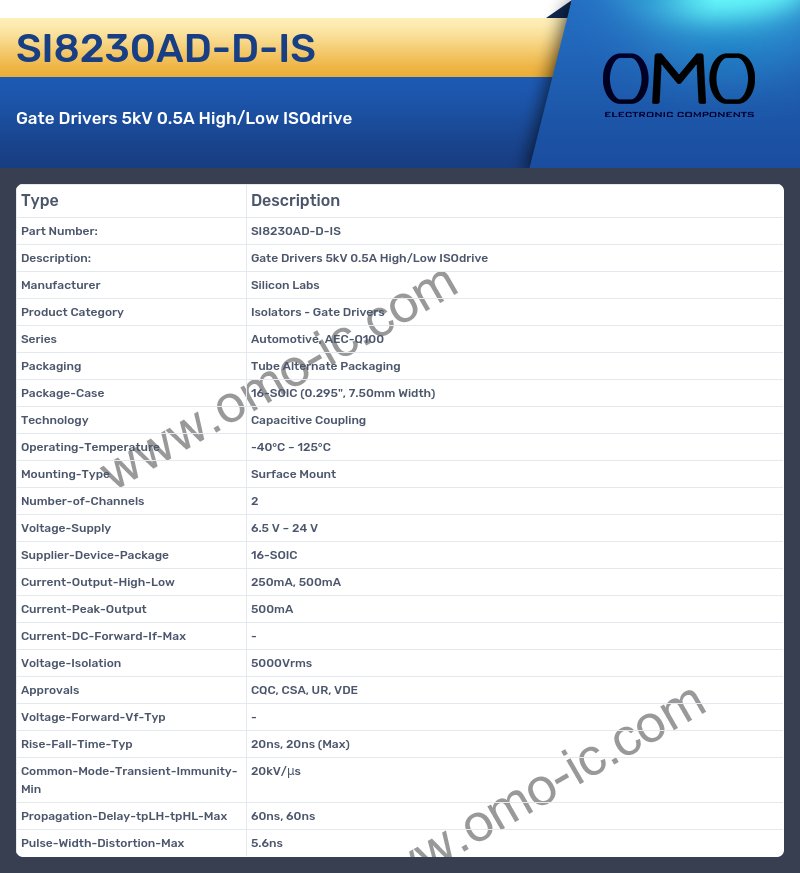

• Manufacturer Silicon Labs
• Product Category Isolators - Gate Drivers
• Series Automotive, AEC-Q100
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 2
• Voltage-Supply 6.5 V ~ 24 V
• Supplier-Device-Package 16-SOIC
• Current-Output-High-Low 250mA, 500mA
• Current-Peak-Output 500mA
• Current-DC-Forward-If-Max -
• Voltage-Isolation 5000Vrms
• Approvals CQC, CSA, UR, VDE
• Voltage-Forward-Vf-Typ -
• Rise-Fall-Time-Typ 20ns, 20ns (Max)
• Common-Mode-Transient-Immunity-Min 20kV/μs
• Propagation-Delay-tpLH-tpHL-Max 60ns, 60ns
• Pulse-Width-Distortion-Max 5.6ns
