| Mfr. #: | SI8233BB-D-IS |
|---|---|
| Hersteller: | Silicon Labs |
| Beschreibung: | Gate Drivers 2.5kV 4A High/Low ISOdrive |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | SI8233BB-D-IS Datenblatt |
Product belongs to the Automotive, AEC-Q100 series. This product is categorized as MOSFET Gate Drivers Type: Isolated Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.017932 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 2 Voltage Supply Range: 9.4 V ~ 24 V Supplier device package: 16-SOIC Configuration High and Low Side Driver Number-of-Outputs: 2 Output The product's 4A is 4A. This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Power-off control: Yes Minimum 20kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 60ns, 60ns The minimum pulse width distortion is 5.6ns. Power-off control: 1.2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 3.5 mA is 92 nA. Output current: 6 mA This product has a 12 ns of 16 ns. This product has a 12 ns of 16 ns. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 2 Driver This product has a Maximum-Turn-Off-Delay-Time of 60 ns. 60 ns maximum turn-on delay time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

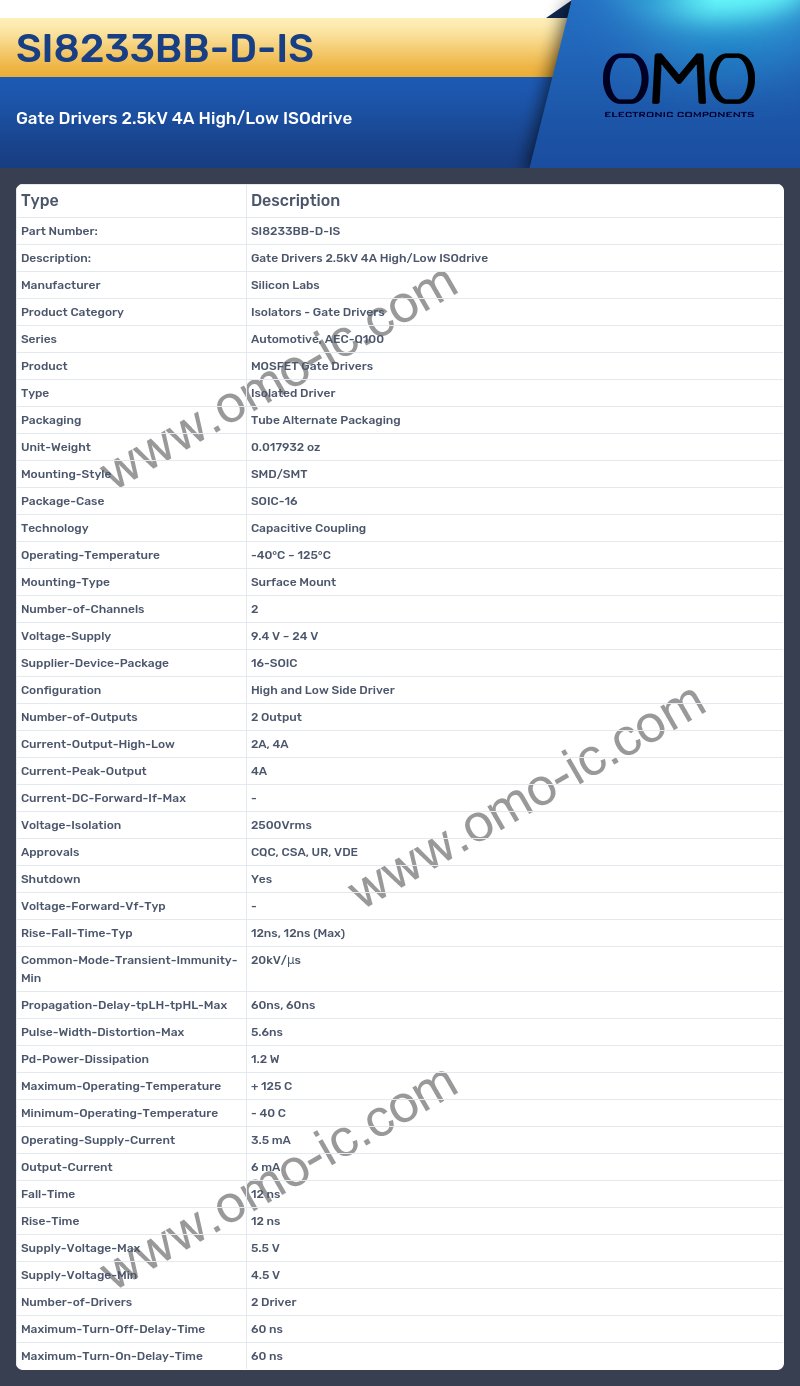

SI8233BB-D-IS Specifications
A: At what frequency does the Series?
Q: The product Series is Automotive, AEC-Q100.
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed MOSFET Gate Drivers
A: At what frequency does the Type?
Q: The product Type is Isolated Driver.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.017932 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-16
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Capacitive Coupling
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 125°C.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 2.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 9.4 V ~ 24 V.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 16-SOIC
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed High and Low Side Driver
A: Is the cutoff frequency of the product Number-of-Outputs?
Q: Yes, the product's Number-of-Outputs is indeed 2 Output
A: What is the Current-Peak-Output of the product?
Q: The Current-Peak-Output of the product is 4A.
A: At what frequency does the Voltage-Isolation?
Q: The product Voltage-Isolation is 2500Vrms.
A: What is the Approvals of the product?
Q: The Approvals of the product is CQC, CSA, UR, VDE.
A: What is the Shutdown of the product?
Q: The Shutdown of the product is Yes.
A: Is the cutoff frequency of the product Common-Mode-Transient-Immunity-Min?
Q: Yes, the product's Common-Mode-Transient-Immunity-Min is indeed 20kV/μs
A: Is the cutoff frequency of the product Propagation-Delay-tpLH-tpHL-Max?
Q: Yes, the product's Propagation-Delay-tpLH-tpHL-Max is indeed 60ns, 60ns
A: At what frequency does the Pulse-Width-Distortion-Max?
Q: The product Pulse-Width-Distortion-Max is 5.6ns.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 1.2 W
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Operating-Supply-Current of the product?
Q: The Operating-Supply-Current of the product is 3.5 mA.
A: At what frequency does the Output-Current?
Q: The product Output-Current is 6 mA.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 12 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 12 ns.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 5.5 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 4.5 V.
A: Is the cutoff frequency of the product Number-of-Drivers?
Q: Yes, the product's Number-of-Drivers is indeed 2 Driver
A: Is the cutoff frequency of the product Maximum-Turn-Off-Delay-Time?
Q: Yes, the product's Maximum-Turn-Off-Delay-Time is indeed 60 ns
A: At what frequency does the Maximum-Turn-On-Delay-Time?
Q: The product Maximum-Turn-On-Delay-Time is 60 ns.
