SI8400AA-B-IS

SI8400AA-B-IS Overview

Product belongs to the Si8400AA series. This product is categorized as Digital Isolators Type: I2C Tube Alternate Packaging is the packaging method for this product Weight of 0.003365 oz SMD/SMT Mounting-Style SOIC-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 8-SOIC This product's Bidirectional This product is designed with 1000Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/2 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs (Typ) of 10kV/μs Maximum Propagation Delay tpLH/tpHL: - The minimum pulse width distortion is -. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Bidirectional Capacitive Coupling is the isolation type specified for this product. 4.2 mA is 92 nA. Isolation voltage of 1 kVrms I2C protocol is supported. Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V 20 ns is 23 microseconds.

SI8400AA-B-IS Image

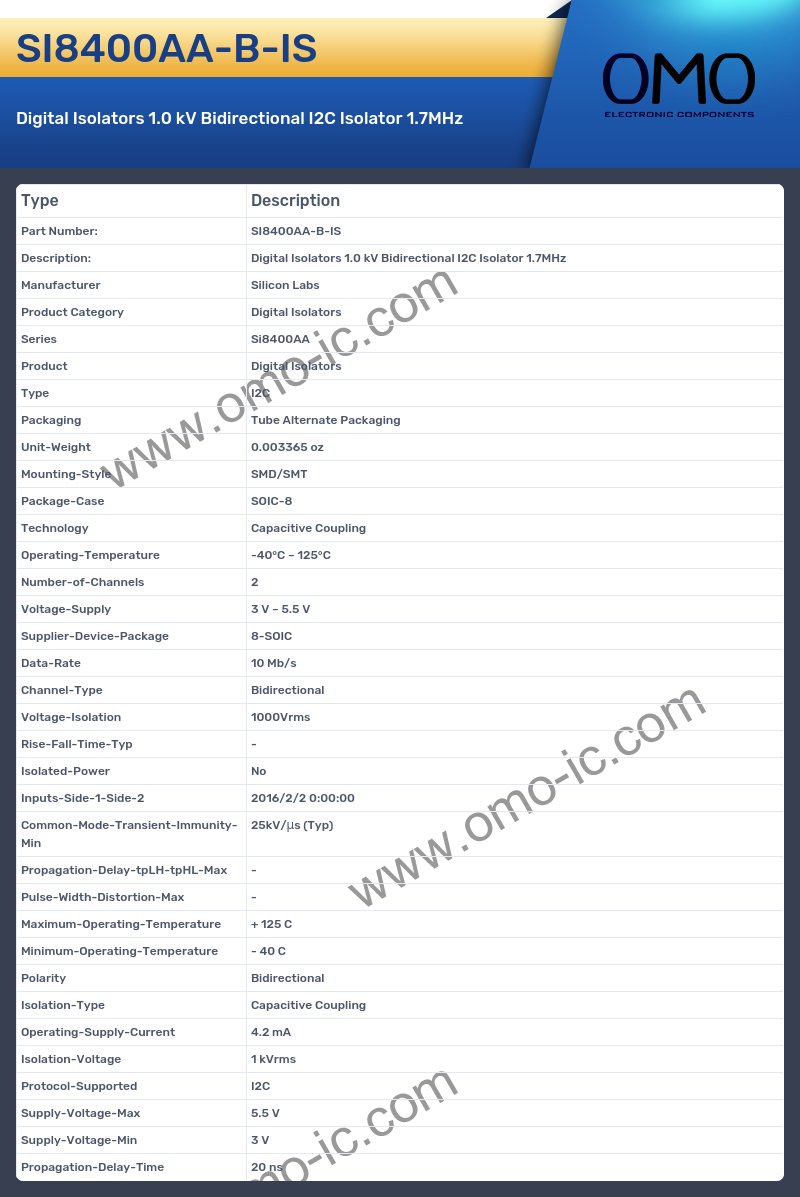

SI8400AA-B-IS Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Si8400AA
• Product Digital Isolators
• Type I2C
• Packaging Tube Alternate Packaging
• Unit-Weight 0.003365 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 2
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 10 Mb/s
• Channel-Type Bidirectional
• Voltage-Isolation 1000Vrms
• Rise-Fall-Time-Typ -
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/2 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs (Typ)
• Propagation-Delay-tpLH-tpHL-Max -
• Pulse-Width-Distortion-Max -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Bidirectional
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 4.2 mA
• Isolation-Voltage 1 kVrms
• Protocol-Supported I2C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Time 20 ns
