SI8420BD-D-IS Overview

Product belongs to the Automotive, AEC-Q100 series. Type: General Purpose Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.295", 7.50mm Width) Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 5000Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2000/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 20kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 11ns, 11ns The minimum pulse width distortion is 3ns.

SI8420BD-D-IS Image

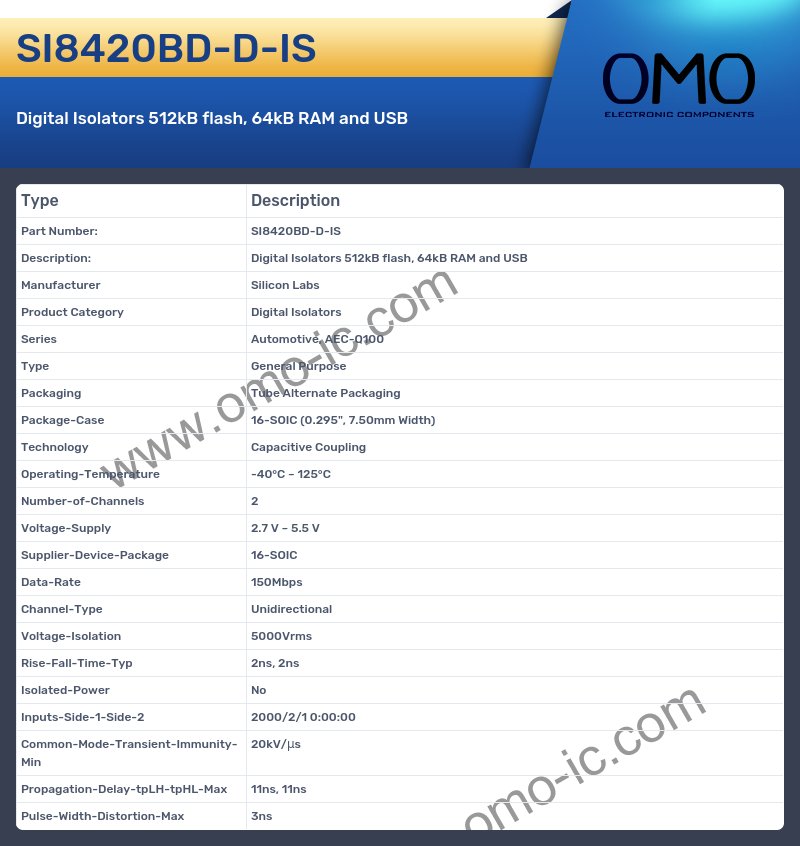

SI8420BD-D-IS Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Automotive, AEC-Q100
• Type General Purpose
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 2
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 150Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 5000Vrms
• Rise-Fall-Time-Typ 2ns, 2ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/2/1 0:00:00
• Common-Mode-Transient-Immunity-Min 20kV/μs
• Propagation-Delay-tpLH-tpHL-Max 11ns, 11ns
• Pulse-Width-Distortion-Max 3ns
