SI8452BA-B-IS1

SI8452BA-B-IS1 Overview

Product belongs to the Si8452BA series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.006637 oz SMD/SMT Mounting-Style SOIC-16 Narrow Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 5 Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 1000Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/3/2 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs (Typ) of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 9.5ns, 9.5ns The minimum pulse width distortion is 2.5ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Capacitive Coupling is the isolation type specified for this product. 6 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V 6 ns is 23 microseconds.

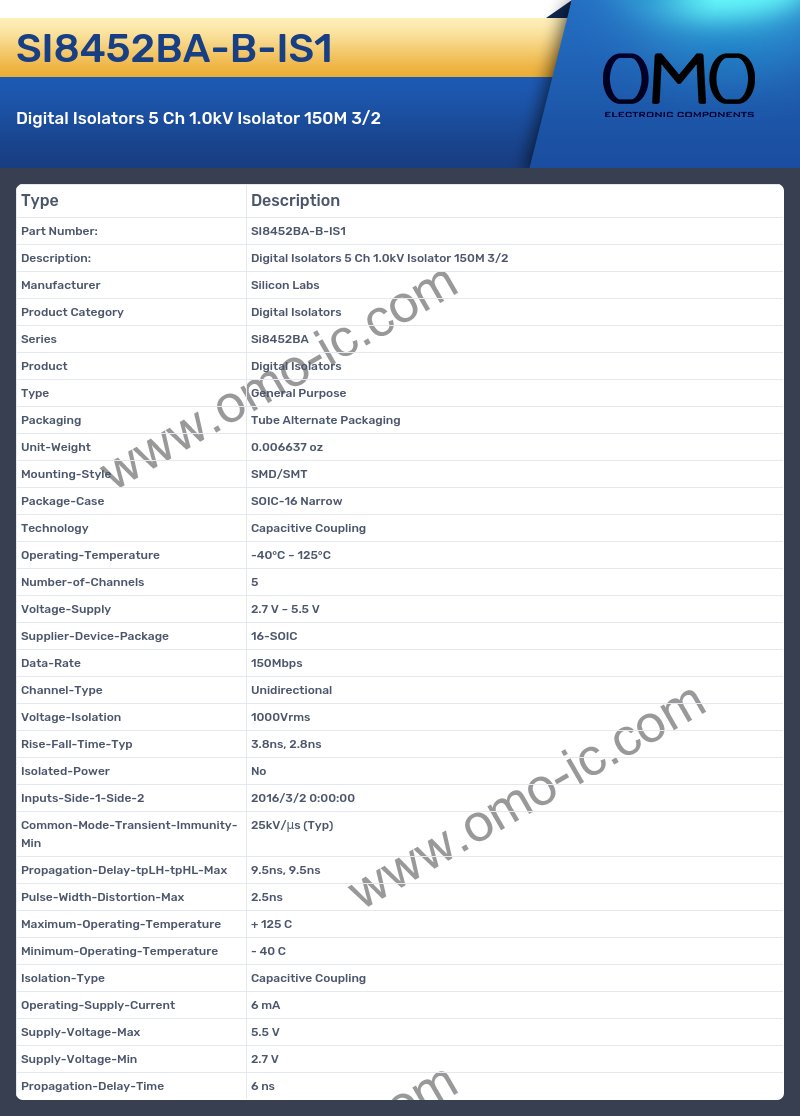

SI8452BA-B-IS1 Image

SI8452BA-B-IS1 Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Si8452BA
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006637 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Narrow
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 5
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 150Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 1000Vrms
• Rise-Fall-Time-Typ 3.8ns, 2.8ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/3/2 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs (Typ)
• Propagation-Delay-tpLH-tpHL-Max 9.5ns, 9.5ns
• Pulse-Width-Distortion-Max 2.5ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 6 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Propagation-Delay-Time 6 ns
