| Mfr. #: | SI8631BT-IS |
|---|---|
| Hersteller: | Silicon Labs |
| Beschreibung: | Digital Isolators 10kV surge Triple HS Digital Isolators |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | SI8631BT-IS Datenblatt |
Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Digital Isolators Type: General Purpose Tube is the packaging method for this product SMD/SMT Mounting-Style SOIC-W-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 3 Voltage Supply Range: 2.5 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 5000Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 60kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 13ns, 13ns The minimum pulse width distortion is 4.5ns. Power-off control: 275 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 6.6 mA 9.9 mA is 92 nA. Isolation voltage of 5 kVrms Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V 8 ns is 23 microseconds. This product features 2 Channel Forward-Channels for simple connectivity. Maximum fall time of 4 ns Rise time max: 4 ns Pulse width distortion is 200 ps The product has 1 Channel for reverse communication. Pulse-Width: 5 ns
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

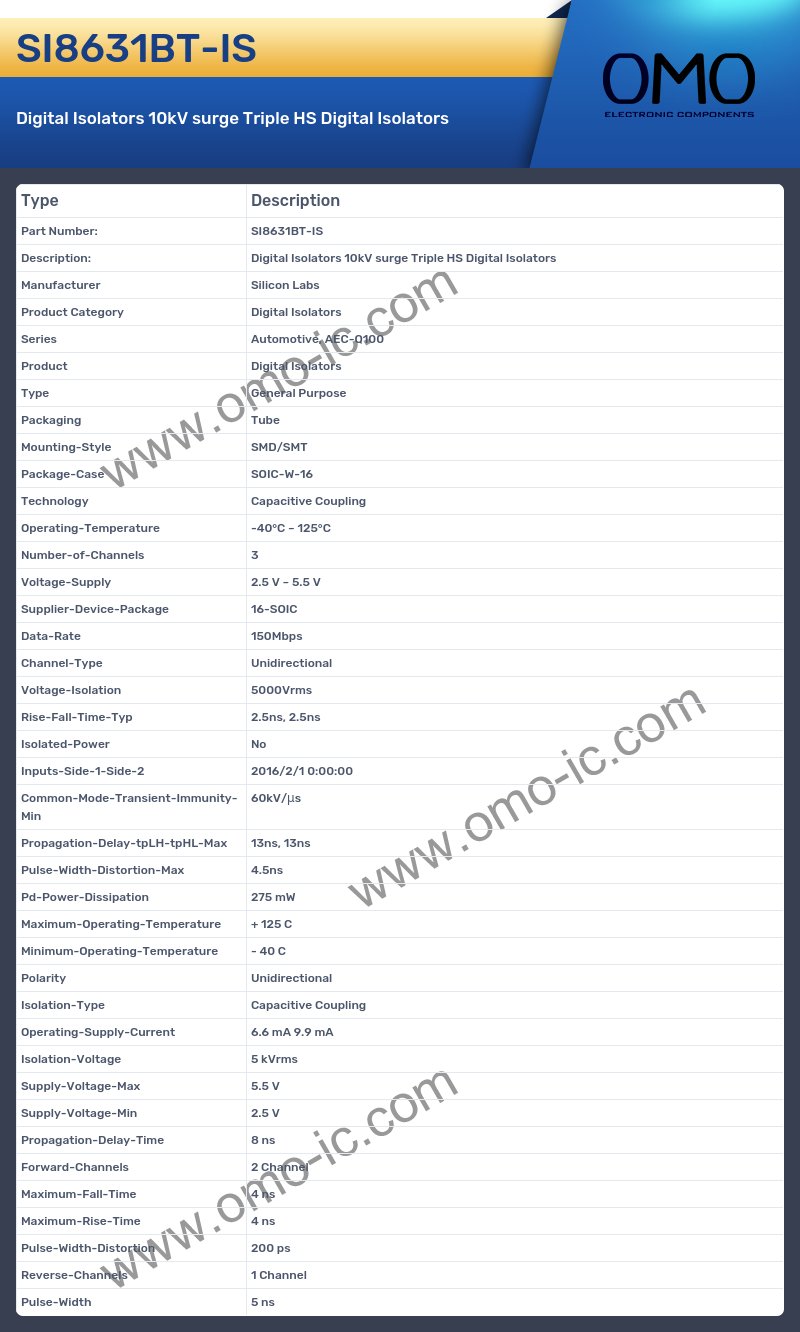

SI8631BT-IS Specifications
A: What is the Series of the product?
Q: The Series of the product is Automotive, AEC-Q100.
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Digital Isolators
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed General Purpose
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-W-16
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Capacitive Coupling
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 125°C.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 3
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is 2.5 V ~ 5.5 V.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-SOIC.
A: Is the cutoff frequency of the product Channel-Type?
Q: Yes, the product's Channel-Type is indeed Unidirectional
A: Is the cutoff frequency of the product Voltage-Isolation?
Q: Yes, the product's Voltage-Isolation is indeed 5000Vrms
A: Is the cutoff frequency of the product Isolated-Power?
Q: Yes, the product's Isolated-Power is indeed No
A: Is the cutoff frequency of the product Inputs-Side-1-Side-2?
Q: Yes, the product's Inputs-Side-1-Side-2 is indeed 2016/2/1 0:00:00
A: At what frequency does the Common-Mode-Transient-Immunity-Min?
Q: The product Common-Mode-Transient-Immunity-Min is 60kV/μs.
A: Is the cutoff frequency of the product Propagation-Delay-tpLH-tpHL-Max?
Q: Yes, the product's Propagation-Delay-tpLH-tpHL-Max is indeed 13ns, 13ns
A: At what frequency does the Pulse-Width-Distortion-Max?
Q: The product Pulse-Width-Distortion-Max is 4.5ns.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 275 mW.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: What is the Polarity of the product?
Q: The Polarity of the product is Unidirectional.
A: What is the Isolation-Type of the product?
Q: The Isolation-Type of the product is Capacitive Coupling.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 6.6 mA 9.9 mA.
A: Is the cutoff frequency of the product Isolation-Voltage?
Q: Yes, the product's Isolation-Voltage is indeed 5 kVrms
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 5.5 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 2.5 V.
A: At what frequency does the Propagation-Delay-Time?
Q: The product Propagation-Delay-Time is 8 ns.
A: At what frequency does the Forward-Channels?
Q: The product Forward-Channels is 2 Channel.
A: At what frequency does the Maximum-Fall-Time?
Q: The product Maximum-Fall-Time is 4 ns.
A: At what frequency does the Maximum-Rise-Time?
Q: The product Maximum-Rise-Time is 4 ns.
A: At what frequency does the Pulse-Width-Distortion?
Q: The product Pulse-Width-Distortion is 200 ps.
A: Is the cutoff frequency of the product Reverse-Channels?
Q: Yes, the product's Reverse-Channels is indeed 1 Channel
A: Is the cutoff frequency of the product Pulse-Width?
Q: Yes, the product's Pulse-Width is indeed 5 ns
