| Mfr. #: | SI8645BT-IS |
|---|---|
| Hersteller: | Silicon Labs |
| Beschreibung: | Digital Isolators 10kV surge Quad HS Digital Isolators |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | SI8645BT-IS Datenblatt |
Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Digital Isolators Type: General Purpose Tube is the packaging method for this product SMD/SMT Mounting-Style SOIC-W-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 2.5 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 5000Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2000/4/1 0:00:00 inputs from Side 1 to Side 2. Minimum 60kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 13ns, 13ns The minimum pulse width distortion is 4.5ns. Power-off control: 275 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 3.6 mA 17.5 mA is 92 nA. Isolation voltage of 5 kVrms Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V 8 ns is 23 microseconds. This product features 4 Channel Forward-Channels for simple connectivity. Maximum fall time of 4 ns Rise time max: 4 ns Pulse width distortion is 200 ps The product has 0 Channel for reverse communication. Pulse-Width: 5 ns
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

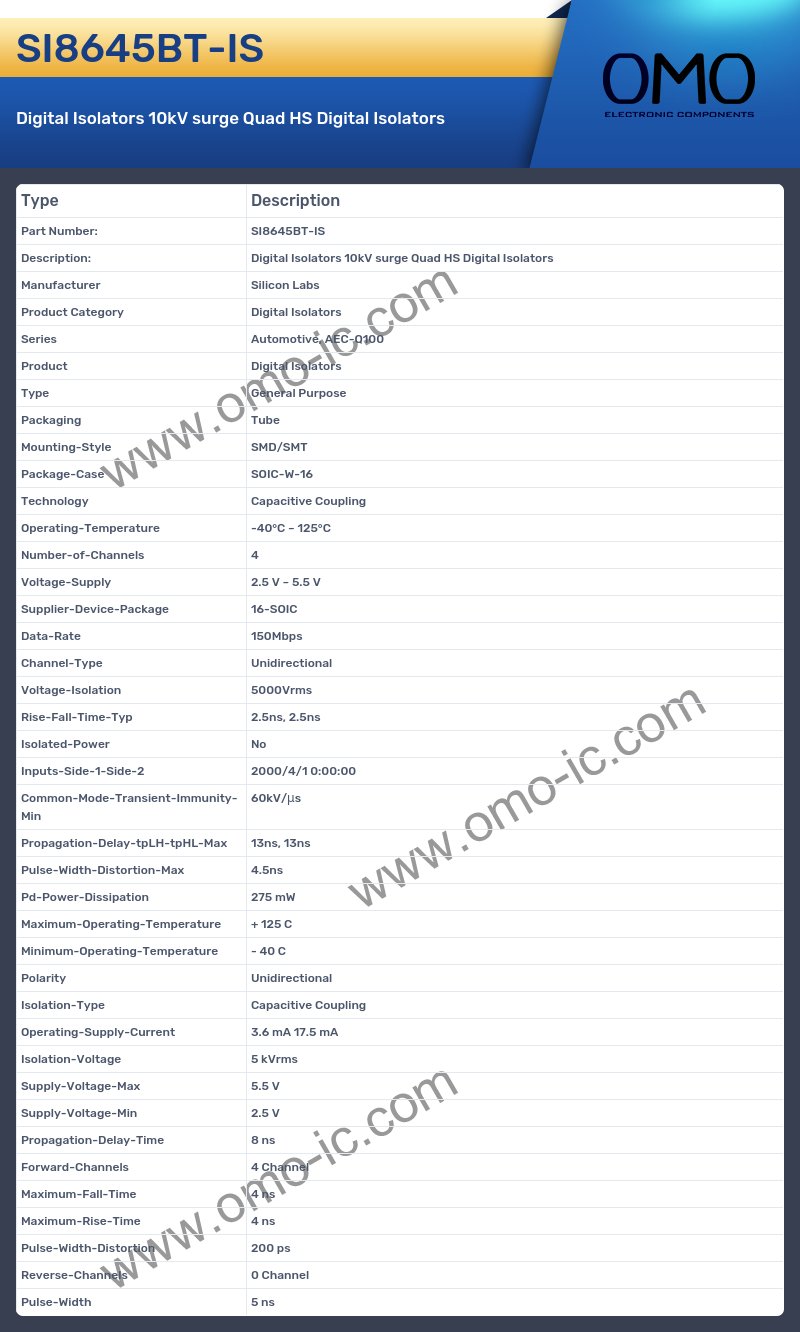

SI8645BT-IS Specifications
A: What is the Series of the product?
Q: The Series of the product is Automotive, AEC-Q100.
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Digital Isolators
A: At what frequency does the Type?
Q: The product Type is General Purpose.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-W-16.
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Capacitive Coupling
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 125°C.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 4.
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is 2.5 V ~ 5.5 V.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-SOIC.
A: What is the Channel-Type of the product?
Q: The Channel-Type of the product is Unidirectional.
A: Is the cutoff frequency of the product Voltage-Isolation?
Q: Yes, the product's Voltage-Isolation is indeed 5000Vrms
A: Is the cutoff frequency of the product Isolated-Power?
Q: Yes, the product's Isolated-Power is indeed No
A: What is the Inputs-Side-1-Side-2 of the product?
Q: The Inputs-Side-1-Side-2 of the product is 2000/4/1 0:00:00.
A: At what frequency does the Common-Mode-Transient-Immunity-Min?
Q: The product Common-Mode-Transient-Immunity-Min is 60kV/μs.
A: What is the Propagation-Delay-tpLH-tpHL-Max of the product?
Q: The Propagation-Delay-tpLH-tpHL-Max of the product is 13ns, 13ns.
A: What is the Pulse-Width-Distortion-Max of the product?
Q: The Pulse-Width-Distortion-Max of the product is 4.5ns.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 275 mW.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: At what frequency does the Polarity?
Q: The product Polarity is Unidirectional.
A: What is the Isolation-Type of the product?
Q: The Isolation-Type of the product is Capacitive Coupling.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 3.6 mA 17.5 mA.
A: What is the Isolation-Voltage of the product?
Q: The Isolation-Voltage of the product is 5 kVrms.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 5.5 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 2.5 V.
A: At what frequency does the Propagation-Delay-Time?
Q: The product Propagation-Delay-Time is 8 ns.
A: Is the cutoff frequency of the product Forward-Channels?
Q: Yes, the product's Forward-Channels is indeed 4 Channel
A: At what frequency does the Maximum-Fall-Time?
Q: The product Maximum-Fall-Time is 4 ns.
A: What is the Maximum-Rise-Time of the product?
Q: The Maximum-Rise-Time of the product is 4 ns.
A: What is the Pulse-Width-Distortion of the product?
Q: The Pulse-Width-Distortion of the product is 200 ps.
A: At what frequency does the Reverse-Channels?
Q: The product Reverse-Channels is 0 Channel.
A: What is the Pulse-Width of the product?
Q: The Pulse-Width of the product is 5 ns.
