SI8717BC-A-IS

SI8717BC-A-IS Overview

Product belongs to the Automotive, AEC-Q100 series. Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.003365 oz SMD/SMT Mounting-Style SOIC-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 1 Voltage Supply Range: 2.5 V ~ 5.5 V Supplier device package: 8-SOIC This product's Unidirectional This product is designed with 3750Vrms voltage isolation for maximum safety and reliability. Power-off control: Shutdown This product is designed with No isolated power for maximum safety and reliability. The product has 2000/1/1 0:00:00 inputs from Side 1 to Side 2. Minimum 35kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 50ns, 50ns The minimum pulse width distortion is 25ns. Power-off control: 253 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Capacitive Coupling is the isolation type specified for this product. 1.7 mA is 92 nA. Isolation voltage of 3.75 kVrms Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V 30 ns is 23 microseconds. This product features 1 Channel Forward-Channels for simple connectivity.

SI8717BC-A-IS Image

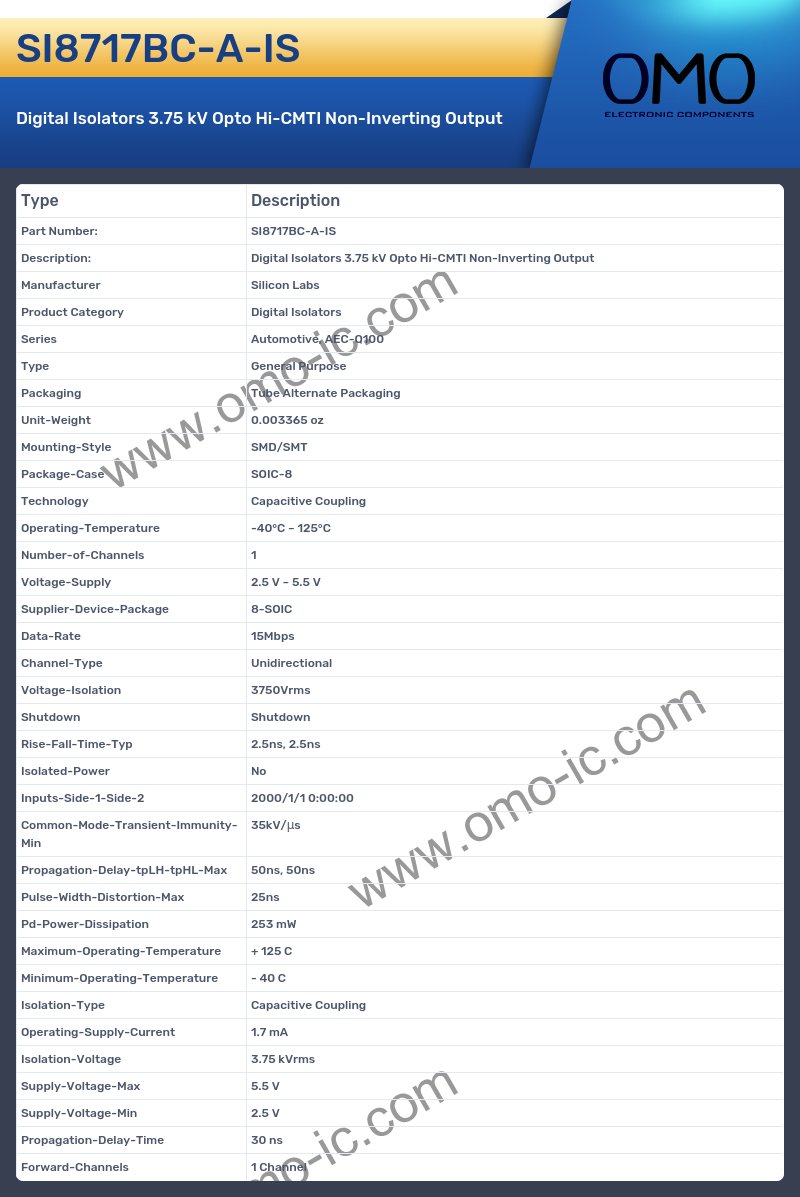

SI8717BC-A-IS Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Automotive, AEC-Q100
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.003365 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 1
• Voltage-Supply 2.5 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 15Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 3750Vrms
• Shutdown Shutdown
• Rise-Fall-Time-Typ 2.5ns, 2.5ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/1/1 0:00:00
• Common-Mode-Transient-Immunity-Min 35kV/μs
• Propagation-Delay-tpLH-tpHL-Max 50ns, 50ns
• Pulse-Width-Distortion-Max 25ns
• Pd-Power-Dissipation 253 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 1.7 mA
• Isolation-Voltage 3.75 kVrms
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.5 V
• Propagation-Delay-Time 30 ns
• Forward-Channels 1 Channel
