SN65HVD75DGK

SN65HVD75DGK Overview

Product belongs to the SN65HVD75 series. This product is categorized as RS-485 Transceivers Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.000705 oz SMD/SMT Mounting-Style VSSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Differential Product function is Transceiver. Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 8-VSSOP This product has a 2016/1/1 number of drivers and receivers. Power-off control: No Shutdown Power-off control: 230 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 3.3 V supply voltage for reliable performance. Output voltage: 2 V 950 uA is 92 nA. Input Voltage Range: 3.3 V Output current: 60 mA Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Drivers: 1 Driver The product has 1 Receiver receivers. 60 ns is 23 microseconds.

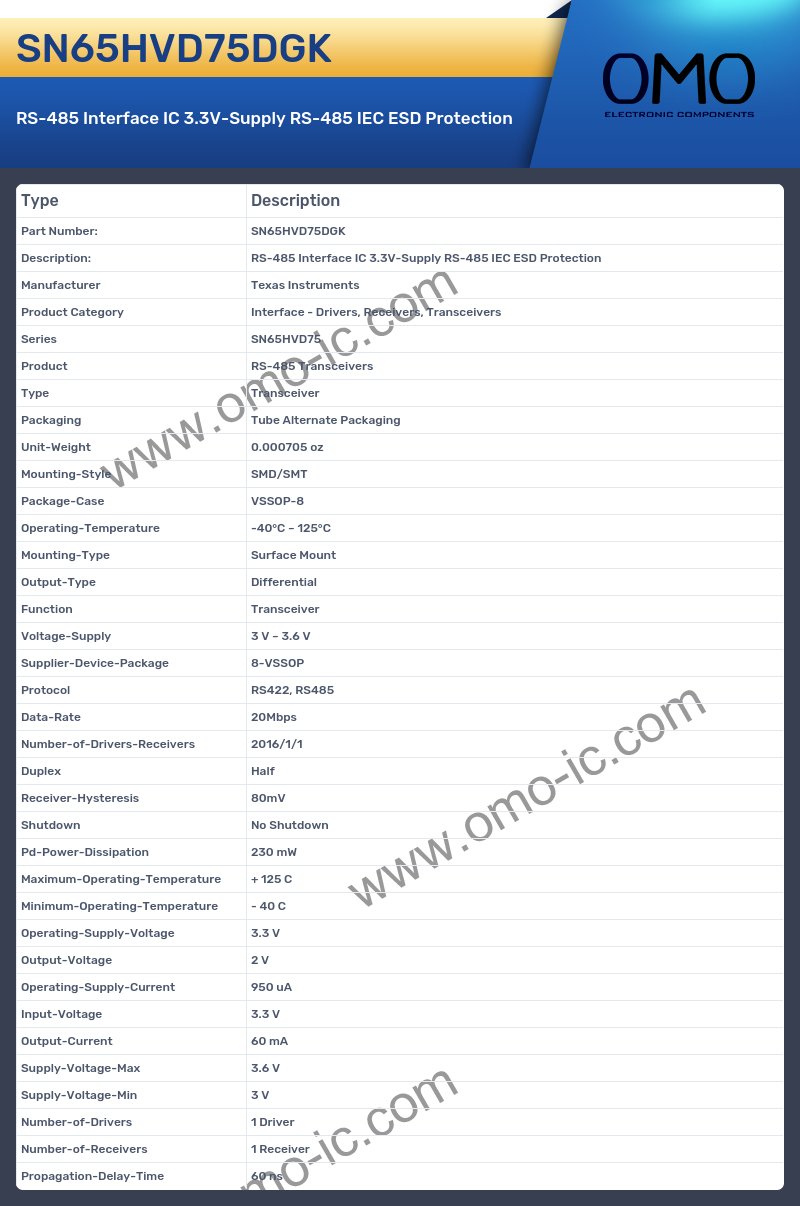

SN65HVD75DGK Image

SN65HVD75DGK Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN65HVD75
• Product RS-485 Transceivers
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.000705 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Transceiver
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 8-VSSOP
• Protocol RS422, RS485
• Data-Rate 20Mbps
• Number-of-Drivers-Receivers 2016/1/1
• Duplex Half
• Receiver-Hysteresis 80mV
• Shutdown No Shutdown
• Pd-Power-Dissipation 230 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V
• Output-Voltage 2 V
• Operating-Supply-Current 950 uA
• Input-Voltage 3.3 V
• Output-Current 60 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 1 Driver
• Number-of-Receivers 1 Receiver
• Propagation-Delay-Time 60 ns
