SN74ALS259D Overview

Product belongs to the 74ALS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Standard Number of channels: 8 Channels Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 16-SOIC 1 Circuit is 8. Circuit type: 1899/12/30 1:08:00 D-Type, Addressable logic type 1 Independent Circuit The 2ns Delay-Time-Propagation. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 22 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V 74AL logic type 19 ns at 4.5 V to 5.5 V is 23 microseconds. High-Level-Output-Current of - 400 uA 32 mA low-level output current Number-of-Input-Lines: 3 Line Number-of-Output-Lines: 1 Line

SN74ALS259D Image

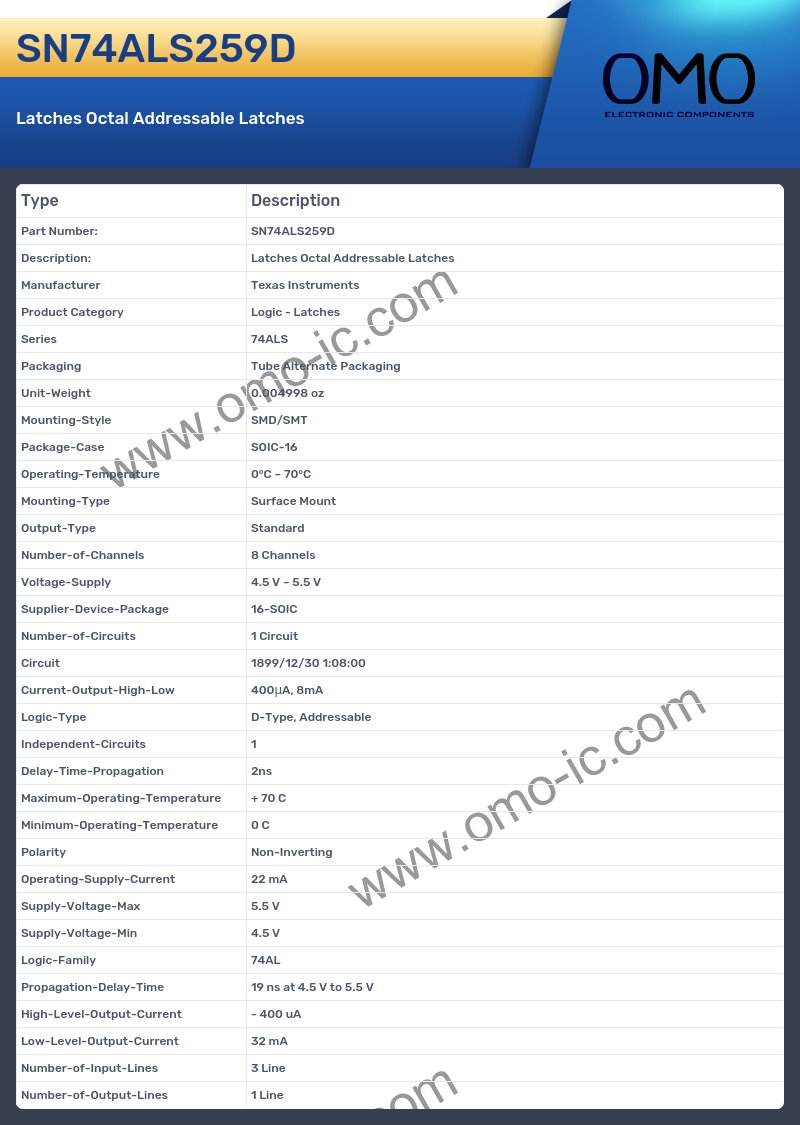

SN74ALS259D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Latches
• Series 74ALS
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Standard
• Number-of-Channels 8 Channels
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Number-of-Circuits 1 Circuit
• Circuit 1899/12/30 1:08:00
• Current-Output-High-Low 400μA, 8mA
• Logic-Type D-Type, Addressable
• Independent-Circuits 1
• Delay-Time-Propagation 2ns
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Operating-Supply-Current 22 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family 74AL
• Propagation-Delay-Time 19 ns at 4.5 V to 5.5 V
• High-Level-Output-Current - 400 uA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 3 Line
• Number-of-Output-Lines 1 Line
