SN74ALS520DW

SN74ALS520DW Overview

Product belongs to the 74ALS series. This product is categorized as Digital Comparators Type: Identity Comparator Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Active Low Voltage Supply Range: 4.5 V ~ 5.5 V The Active Low. 8 bits The A=B of this product includes /OverTemp and /UnderTemp signals. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply current: 19 mA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Identity comparator type 20 ns is 23 microseconds. A = B logic function

SN74ALS520DW Image

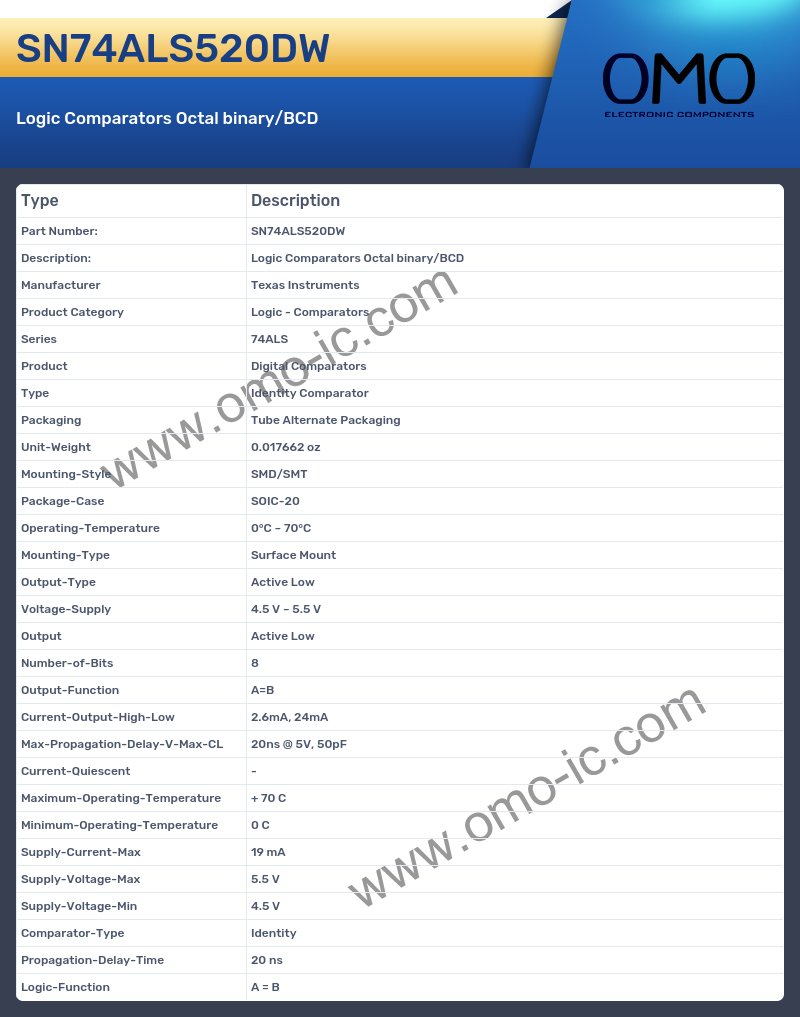

SN74ALS520DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Comparators
• Series 74ALS
• Product Digital Comparators
• Type Identity Comparator
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Active Low
• Voltage-Supply 4.5 V ~ 5.5 V
• Output Active Low
• Number-of-Bits 8
• Output-Function A=B
• Current-Output-High-Low 2.6mA, 24mA
• Max-Propagation-Delay-V-Max-CL 20ns @ 5V, 50pF
• Current-Quiescent -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Current-Max 19 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Comparator-Type Identity
• Propagation-Delay-Time 20 ns
• Logic-Function A = B
