SN74ALS832ADW

SN74ALS832ADW Overview

Product belongs to the 74ALS series. This product is categorized as Single-Function Gate Tube is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications SOIC-20 Wide Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SOIC 6 is 8. 6 Gate is the number of gates included in this product. - maximum quiescent current. OR Gate logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ALS logic type 9 ns at 4.5 V to 5.5 V is 23 microseconds. High-Level-Output-Current of - 15 mA 24 mA low-level output current Number-of-Input-Lines: 12 Input Number-of-Output-Lines: 6 Output OR logic function

SN74ALS832ADW Image

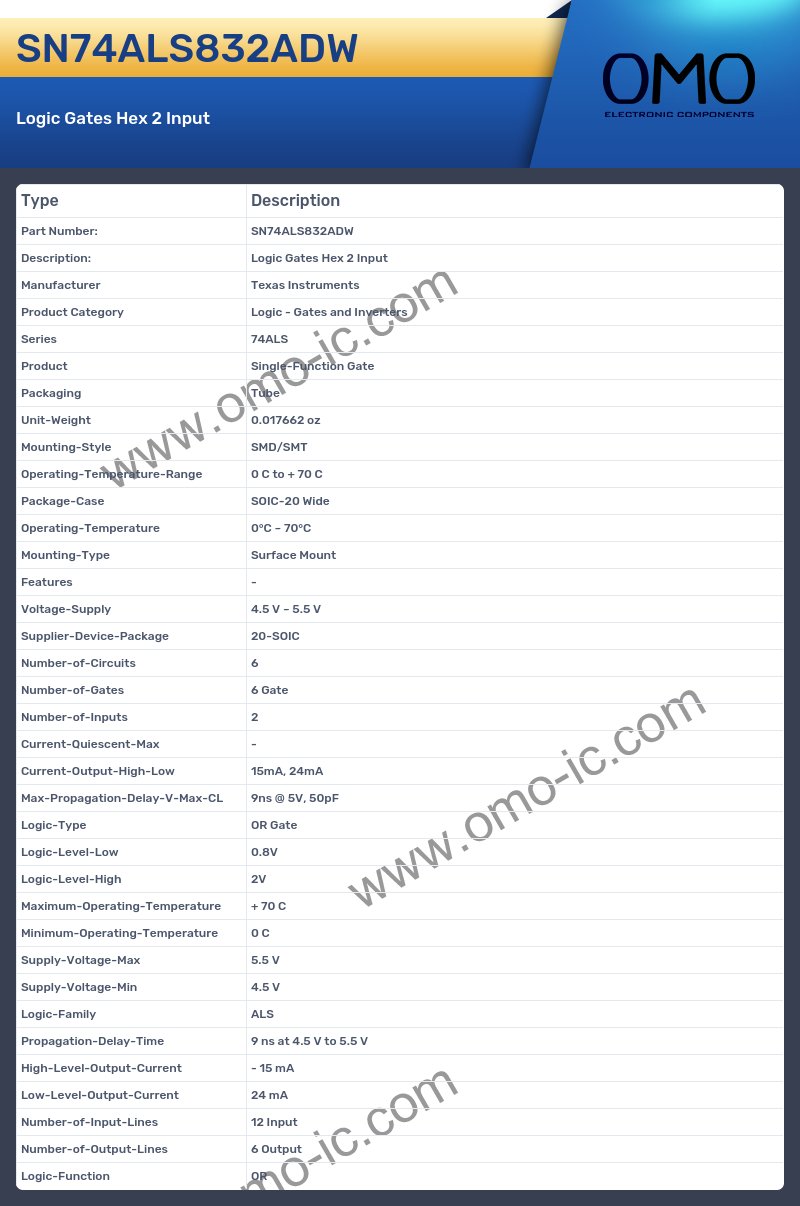

SN74ALS832ADW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74ALS
• Product Single-Function Gate
• Packaging Tube
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case SOIC-20 Wide
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 6
• Number-of-Gates 6 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max -
• Current-Output-High-Low 15mA, 24mA
• Max-Propagation-Delay-V-Max-CL 9ns @ 5V, 50pF
• Logic-Type OR Gate
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ALS
• Propagation-Delay-Time 9 ns at 4.5 V to 5.5 V
• High-Level-Output-Current - 15 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 12 Input
• Number-of-Output-Lines 6 Output
• Logic-Function OR
