SN74F521NSR

SN74F521NSR Overview

Product belongs to the 74F series. This product is categorized as Digital Comparators Type: Identity Comparator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SOP-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Active Low Voltage Supply Range: 4.5 V ~ 5.5 V The Active Low. 8 bits The A=B of this product includes /OverTemp and /UnderTemp signals. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply current: 32 mA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Magnitude comparator type 10 ns is 23 microseconds. A = B logic function

SN74F521NSR Image

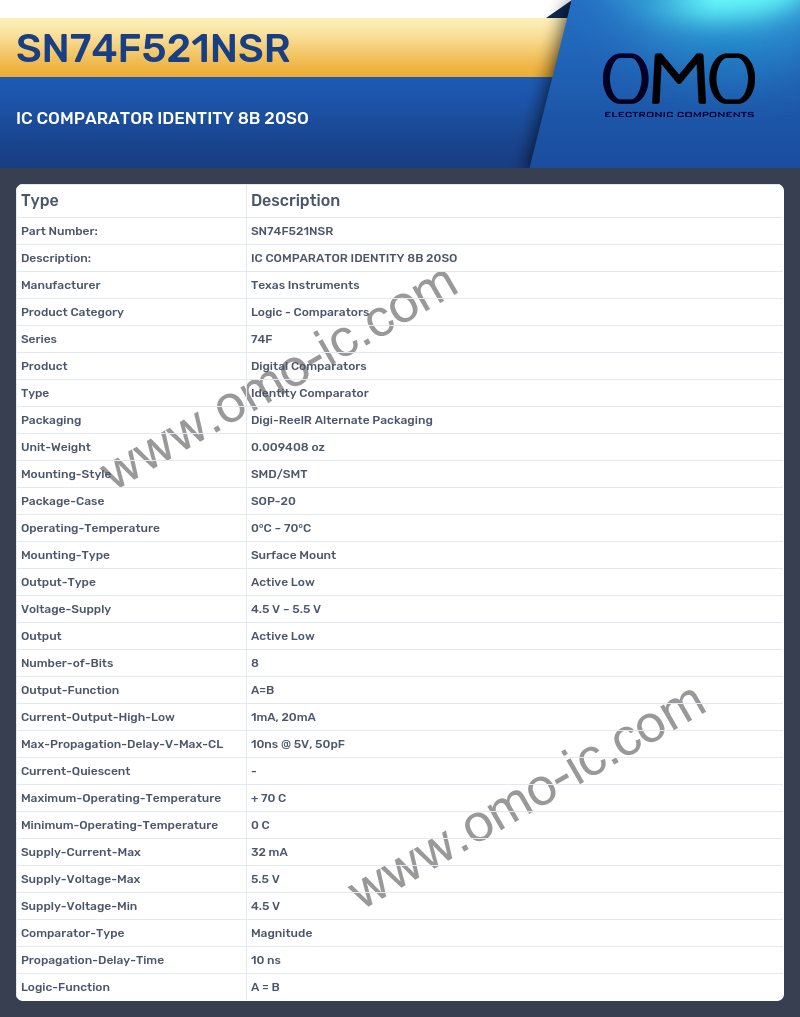

SN74F521NSR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Comparators
• Series 74F
• Product Digital Comparators
• Type Identity Comparator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Active Low
• Voltage-Supply 4.5 V ~ 5.5 V
• Output Active Low
• Number-of-Bits 8
• Output-Function A=B
• Current-Output-High-Low 1mA, 20mA
• Max-Propagation-Delay-V-Max-CL 10ns @ 5V, 50pF
• Current-Quiescent -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Current-Max 32 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Comparator-Type Magnitude
• Propagation-Delay-Time 10 ns
• Logic-Function A = B
