SN74FB1653PCA

SN74FB1653PCA Overview

Product belongs to the 74FB series. This product is categorized as Buffer Type Transceiver Tray is the packaging method for this product SMD/SMT Mounting-Style Trade name: USR. HLQFP-100 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State/Open Collector Product function is Universal Bus Transceiver. Number of channels: 17 Supplier device package: 100-HLQFP (14x14) 2 is 8. 17 bits LVTTL/BTL Universal Storage Transceiver with Buffered Clock Line logic type The 4.5 V ~ 5.5 V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting Maximum supply current: 145 mA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V FB logic type 15.4 ns is 23 microseconds. BTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 3 mA 100 mA low-level output current

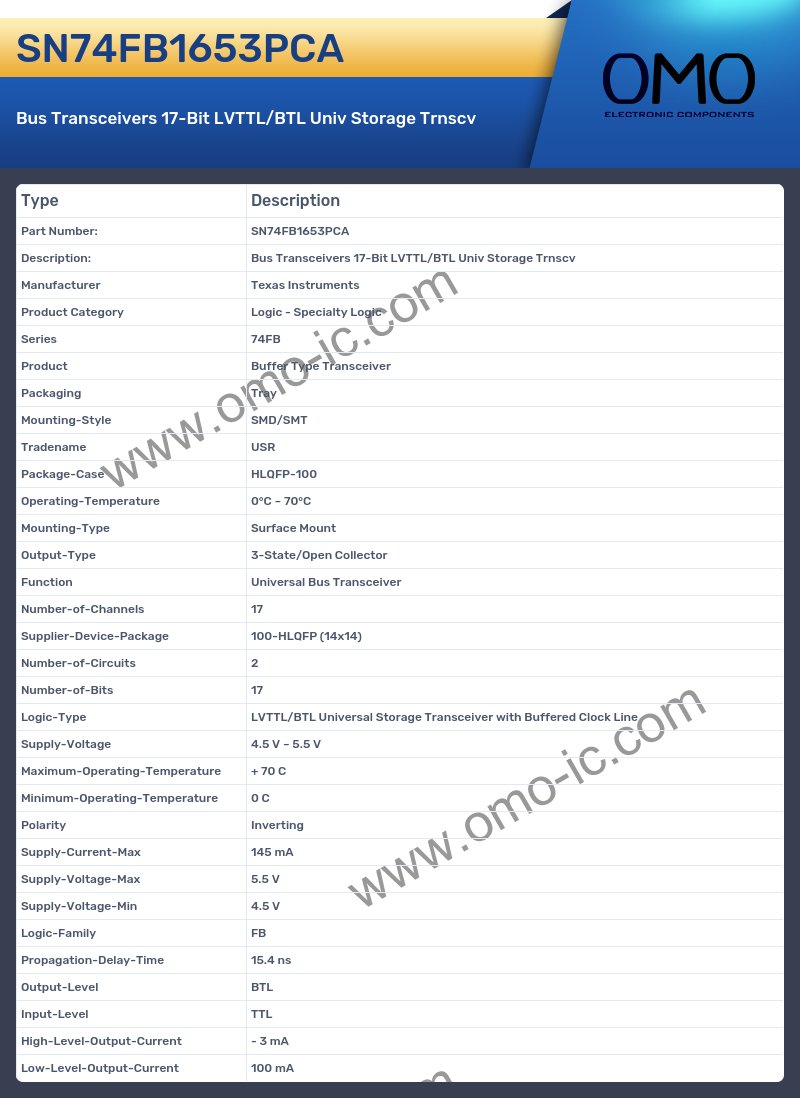

SN74FB1653PCA Image

SN74FB1653PCA Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Specialty Logic
• Series 74FB
• Product Buffer Type Transceiver
• Packaging Tray
• Mounting-Style SMD/SMT
• Tradename USR
• Package-Case HLQFP-100
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type 3-State/Open Collector
• Function Universal Bus Transceiver
• Number-of-Channels 17
• Supplier-Device-Package 100-HLQFP (14x14)
• Number-of-Circuits 2
• Number-of-Bits 17
• Logic-Type LVTTL/BTL Universal Storage Transceiver with Buffered Clock Line
• Supply-Voltage 4.5 V ~ 5.5 V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Inverting
• Supply-Current-Max 145 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family FB
• Propagation-Delay-Time 15.4 ns
• Output-Level BTL
• Input-Level TTL
• High-Level-Output-Current - 3 mA
• Low-Level-Output-Current 100 mA
