SN74HC125DT

SN74HC125DT Overview

Product belongs to the 74HC series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SOIC 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 160 uA is 92 nA. Maximum supply voltage of 6 V Minimum supply voltage is 2 V HC logic type 150 ns at 2 V 30 ns at 4.5 V 25 ns at 6 V is 23 microseconds. High-Level-Output-Current of - 7.8 mA 7.8 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output

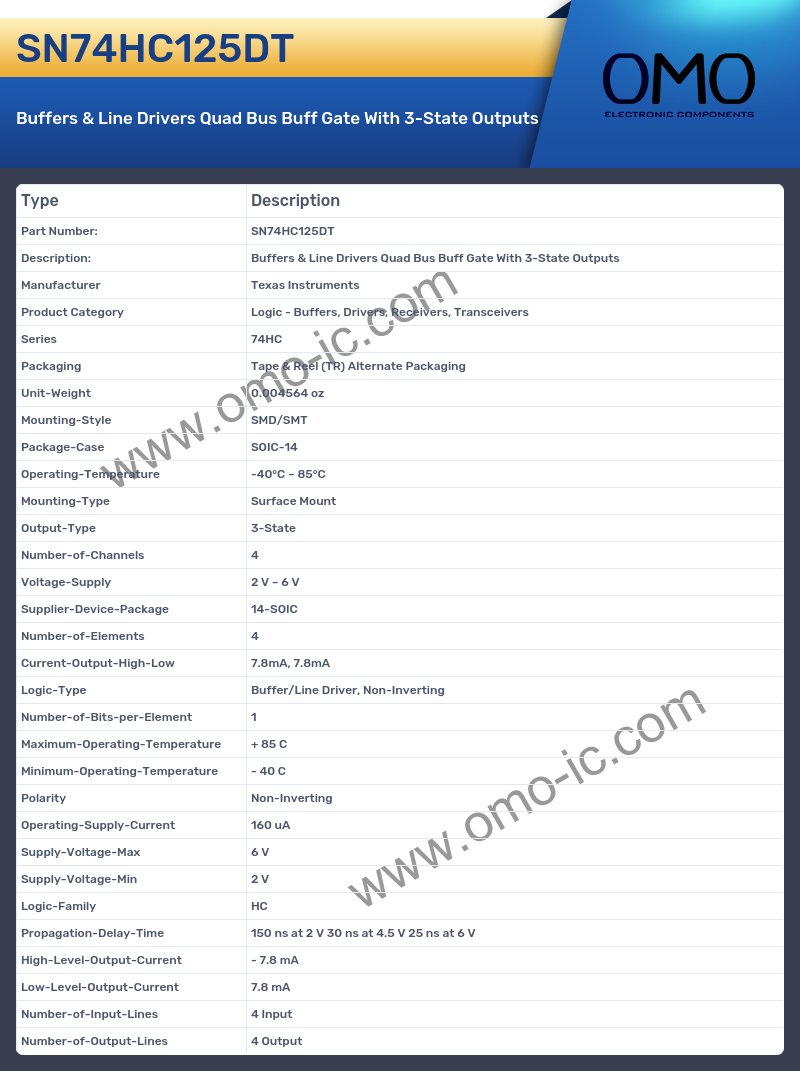

SN74HC125DT Image

SN74HC125DT Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74HC
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 4
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-SOIC
• Number-of-Elements 4
• Current-Output-High-Low 7.8mA, 7.8mA
• Logic-Type Buffer/Line Driver, Non-Inverting
• Number-of-Bits-per-Element 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Operating-Supply-Current 160 uA
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family HC
• Propagation-Delay-Time 150 ns at 2 V 30 ns at 4.5 V 25 ns at 6 V
• High-Level-Output-Current - 7.8 mA
• Low-Level-Output-Current 7.8 mA
• Number-of-Input-Lines 4 Input
• Number-of-Output-Lines 4 Output
