SN74HC74N

SN74HC74N Overview

Product belongs to the 74HC series. Type: D-Type Tube Alternate Packaging is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style PDIP-14 The CMOS for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Differential Product function is Set(Preset) and Reset. Voltage Supply Range: 2 V ~ 6 V 2 is 8. 60MHz is 26GHz. 2 element D-Type Edge Triggered Flip-Flop logic type 1 bits per element Positive Edge trigger type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting/Non-Inverting Maximum supply voltage of 6 V Minimum supply voltage is 2 V HC logic type 175 ns is 23 microseconds. High-Level-Output-Current of - 5.2 mA 5.2 mA low-level output current Number-of-Input-Lines: 4 Number-of-Output-Lines: 2

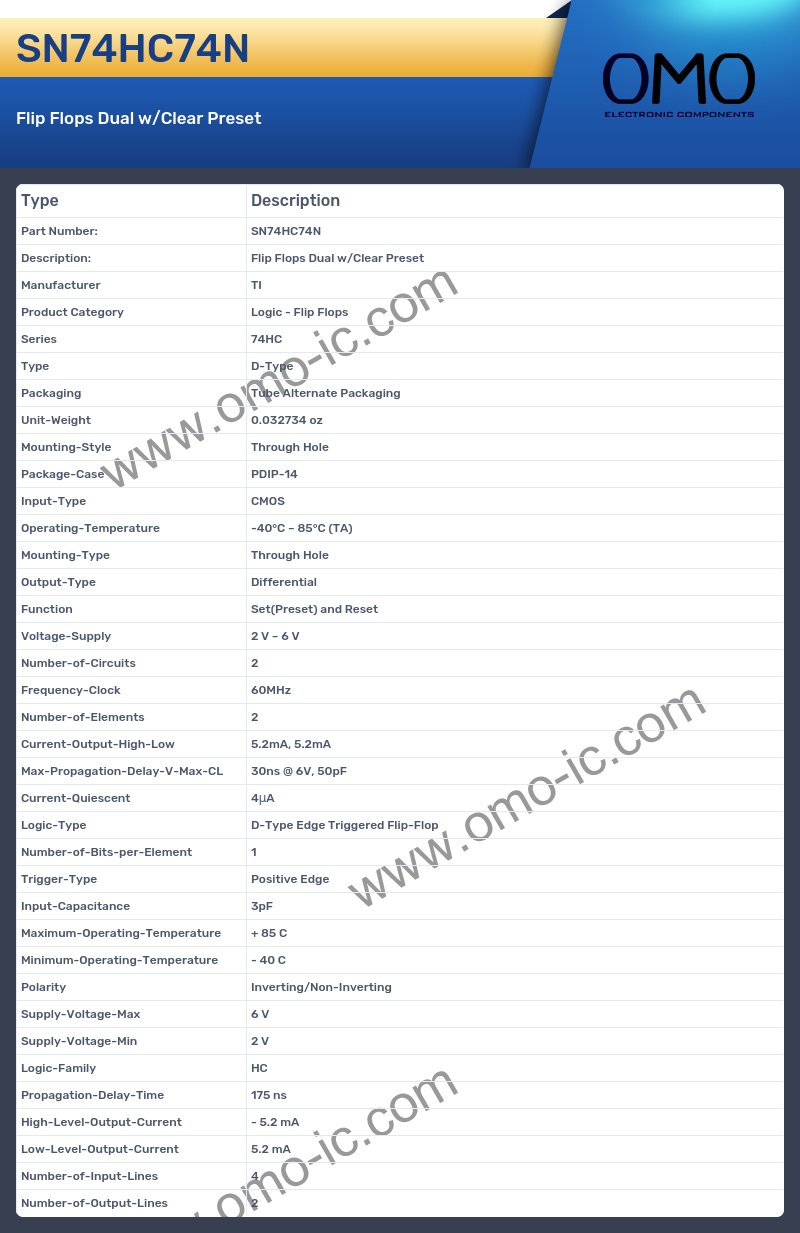

SN74HC74N Image

SN74HC74N Specifications

• Manufacturer TI
• Product Category Logic - Flip Flops
• Series 74HC
• Type D-Type
• Packaging Tube Alternate Packaging
• Unit-Weight 0.032734 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Input-Type CMOS
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Differential
• Function Set(Preset) and Reset
• Voltage-Supply 2 V ~ 6 V
• Number-of-Circuits 2
• Frequency-Clock 60MHz
• Number-of-Elements 2
• Current-Output-High-Low 5.2mA, 5.2mA
• Max-Propagation-Delay-V-Max-CL 30ns @ 6V, 50pF
• Current-Quiescent 4μA
• Logic-Type D-Type Edge Triggered Flip-Flop
• Number-of-Bits-per-Element 1
• Trigger-Type Positive Edge
• Input-Capacitance 3pF
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting/Non-Inverting
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family HC
• Propagation-Delay-Time 175 ns
• High-Level-Output-Current - 5.2 mA
• Low-Level-Output-Current 5.2 mA
• Number-of-Input-Lines 4
• Number-of-Output-Lines 2
