| Mfr. #: | SN74LS126AN |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | SN74LS126AN Datenblatt |
Product belongs to the 74LS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style PDIP-14 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-PDIP 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 62 uA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 18 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 2.6 mA 24 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

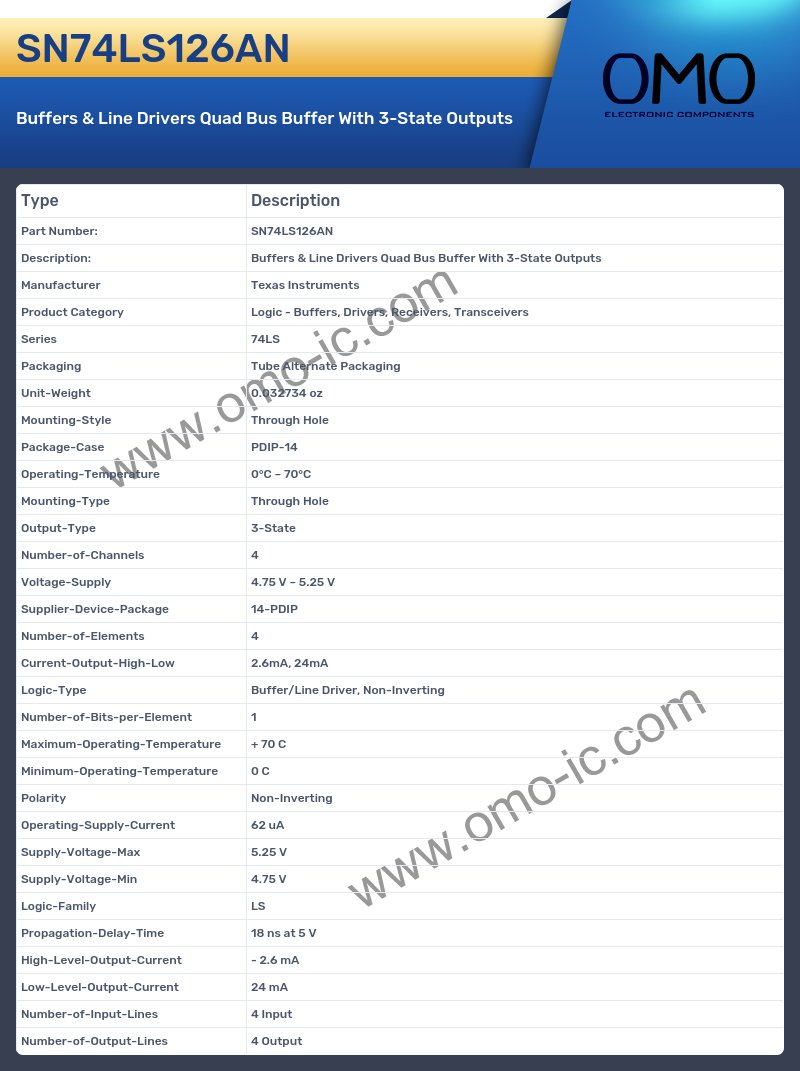

SN74LS126AN Specifications
A: At what frequency does the Series?
Q: The product Series is 74LS.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.032734 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is PDIP-14.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: At what frequency does the Output-Type?
Q: The product Output-Type is 3-State.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 4
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 4.75 V ~ 5.25 V.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 14-PDIP.
A: What is the Number-of-Elements of the product?
Q: The Number-of-Elements of the product is 4.
A: At what frequency does the Logic-Type?
Q: The product Logic-Type is Buffer/Line Driver, Non-Inverting.
A: At what frequency does the Number-of-Bits-per-Element?
Q: The product Number-of-Bits-per-Element is 1.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 70 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is 0 C.
A: At what frequency does the Polarity?
Q: The product Polarity is Non-Inverting.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 62 uA.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5.25 V
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 4.75 V.
A: At what frequency does the Logic-Family?
Q: The product Logic-Family is LS.
A: At what frequency does the Propagation-Delay-Time?
Q: The product Propagation-Delay-Time is 18 ns at 5 V.
A: Is the cutoff frequency of the product High-Level-Output-Current?
Q: Yes, the product's High-Level-Output-Current is indeed - 2.6 mA
A: Is the cutoff frequency of the product Low-Level-Output-Current?
Q: Yes, the product's Low-Level-Output-Current is indeed 24 mA
A: What is the Number-of-Input-Lines of the product?
Q: The Number-of-Input-Lines of the product is 4 Input.
A: Is the cutoff frequency of the product Number-of-Output-Lines?
Q: Yes, the product's Number-of-Output-Lines is indeed 4 Output
