SN74LS243DR

SN74LS243DR Overview

Product belongs to the 74LS series. This product is categorized as Standard Transceiver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Product function is Bus Transceiver. Number of channels: 4 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC 4 is 8. 1 element Transceiver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 18 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 15 mA 24 mA low-level output current

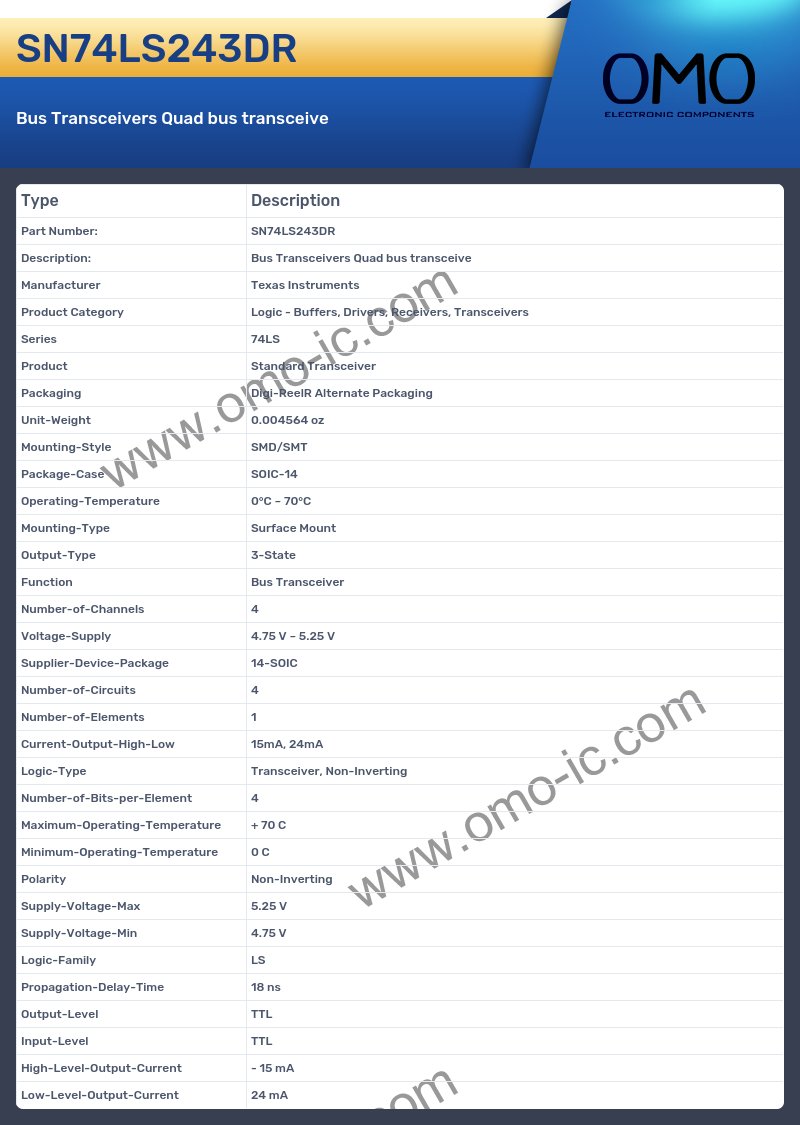

SN74LS243DR Image

SN74LS243DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LS
• Product Standard Transceiver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Bus Transceiver
• Number-of-Channels 4
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 4
• Number-of-Elements 1
• Current-Output-High-Low 15mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 4
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 18 ns
• Output-Level TTL
• Input-Level TTL
• High-Level-Output-Current - 15 mA
• Low-Level-Output-Current 24 mA
