SN74LS85D

SN74LS85D Overview

Product belongs to the 74LS series. This product is categorized as Digital Comparators Type: Magnitude Comparator Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Active High Voltage Supply Range: 4.75 V ~ 5.25 V The Active High. 4 bits The A<B, A=B, A>B of this product includes /OverTemp and /UnderTemp signals. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply current: 20 mA Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Magnitude comparator type 45 ns is 23 microseconds. A < B A = B A > B logic function

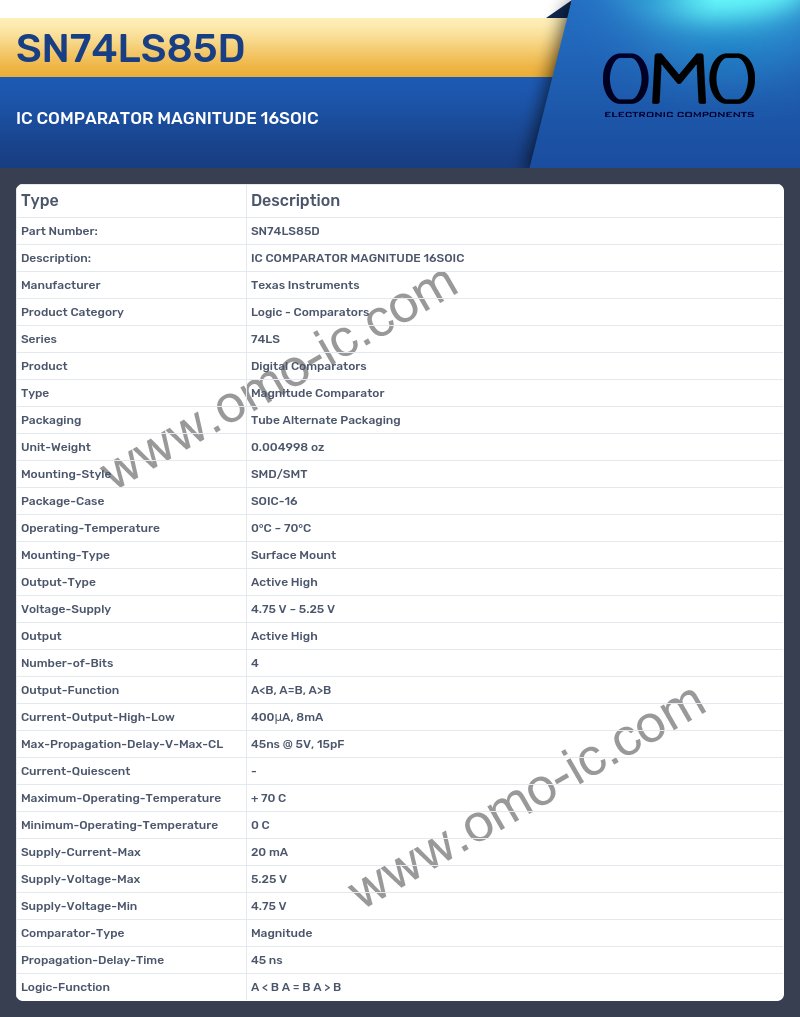

SN74LS85D Image

SN74LS85D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Comparators
• Series 74LS
• Product Digital Comparators
• Type Magnitude Comparator
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Active High
• Voltage-Supply 4.75 V ~ 5.25 V
• Output Active High
• Number-of-Bits 4
• Output-Function A<B, A=B, A>B
• Current-Output-High-Low 400μA, 8mA
• Max-Propagation-Delay-V-Max-CL 45ns @ 5V, 15pF
• Current-Quiescent -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Current-Max 20 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Comparator-Type Magnitude
• Propagation-Delay-Time 45 ns
• Logic-Function A < B A = B A > B
