| Mfr. #: | SN74LV125ATDBR |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Buffers & Line Drivers Quad Bus Bffr Gate |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | SN74LV125ATDBR Datenblatt |
Product belongs to the 74LV series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004296 oz SMD/SMT Mounting-Style SSOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 14-SSOP 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 20 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V LV logic type 7.5 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 16 mA 16 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

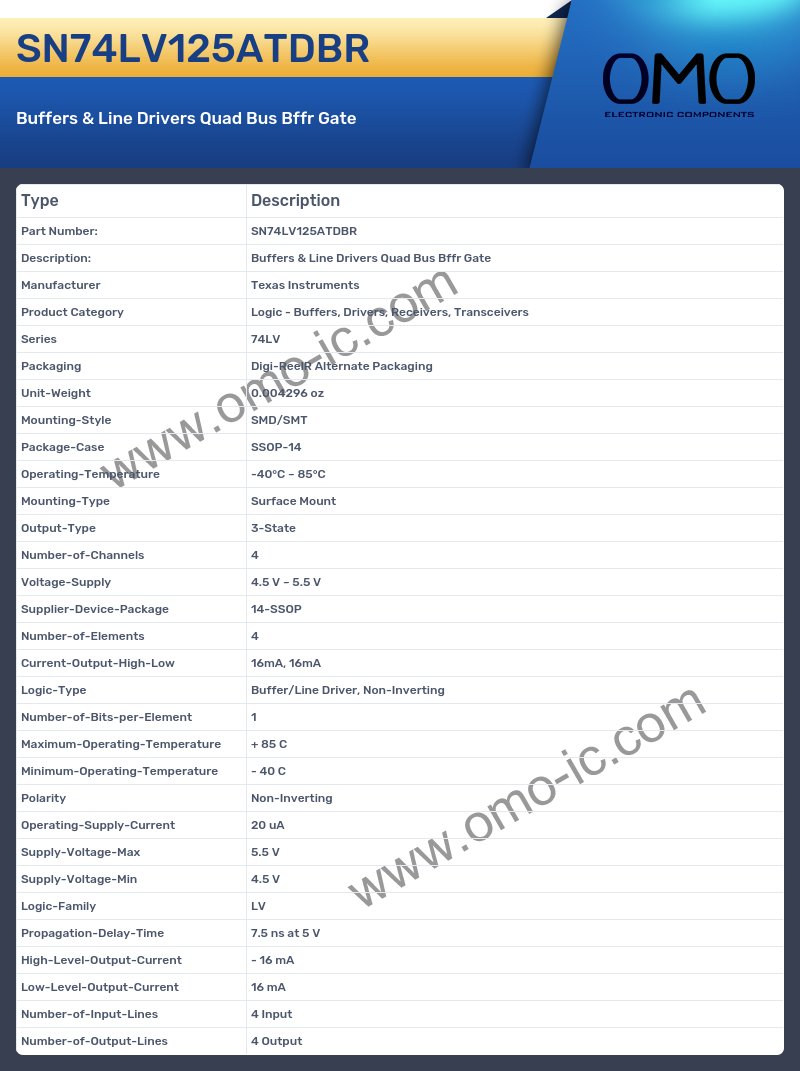

SN74LV125ATDBR Specifications
