| Mfr. #: | SN74LV244ANSR |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Buffers & Line Drivers Tri-State Octal |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | SN74LV244ANSR Datenblatt |
Product belongs to the 74LV series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SOP-20 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 20-SO 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 20 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV logic type 15.3 ns at 2.5 V 11.9 ns at 3.3 V 7.5 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 16 mA 16 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

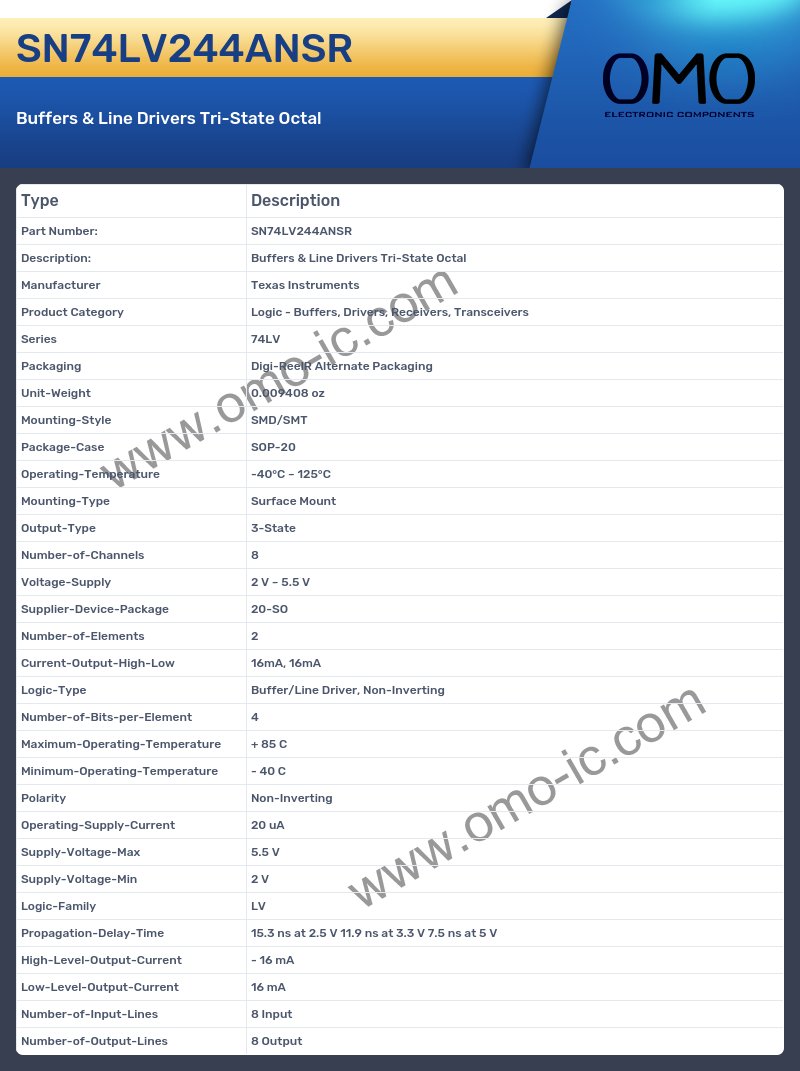

SN74LV244ANSR Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 74LV
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.009408 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOP-20
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 125°C.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: What is the Output-Type of the product?
Q: The Output-Type of the product is 3-State.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 8.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 2 V ~ 5.5 V.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 20-SO
A: Is the cutoff frequency of the product Number-of-Elements?
Q: Yes, the product's Number-of-Elements is indeed 2
A: What is the Logic-Type of the product?
Q: The Logic-Type of the product is Buffer/Line Driver, Non-Inverting.
A: Is the cutoff frequency of the product Number-of-Bits-per-Element?
Q: Yes, the product's Number-of-Bits-per-Element is indeed 4
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: At what frequency does the Polarity?
Q: The product Polarity is Non-Inverting.
A: Is the cutoff frequency of the product Operating-Supply-Current?
Q: Yes, the product's Operating-Supply-Current is indeed 20 uA
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 5.5 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 2 V.
A: Is the cutoff frequency of the product Logic-Family?
Q: Yes, the product's Logic-Family is indeed LV
A: What is the Propagation-Delay-Time of the product?
Q: The Propagation-Delay-Time of the product is 15.3 ns at 2.5 V 11.9 ns at 3.3 V 7.5 ns at 5 V.
A: At what frequency does the High-Level-Output-Current?
Q: The product High-Level-Output-Current is - 16 mA.
A: What is the Low-Level-Output-Current of the product?
Q: The Low-Level-Output-Current of the product is 16 mA.
A: Is the cutoff frequency of the product Number-of-Input-Lines?
Q: Yes, the product's Number-of-Input-Lines is indeed 8 Input
A: At what frequency does the Number-of-Output-Lines?
Q: The product Number-of-Output-Lines is 8 Output.
