SN74LVC10ANSR

SN74LVC10ANSR Overview

Product belongs to the 74LVC series. This product is categorized as Single-Function Gate Tape & Reel (TR) is the packaging method for this product Weight of 0.007348 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications SOP-14 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 1.65 V ~ 3.6 V Supplier device package: 14-SO 3 is 8. 3 Gate is the number of gates included in this product. 1μA maximum quiescent current. NAND Gate logic type 0.7 V ~ 0.8 V is a Logic-Level-Low; 1.7 V ~ 2 V is the Logic-Level-High Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 3.6 V Minimum supply voltage is 2 V LVC logic type 4.9 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 3 Input Number-of-Output-Lines: 1 Output NAND logic function

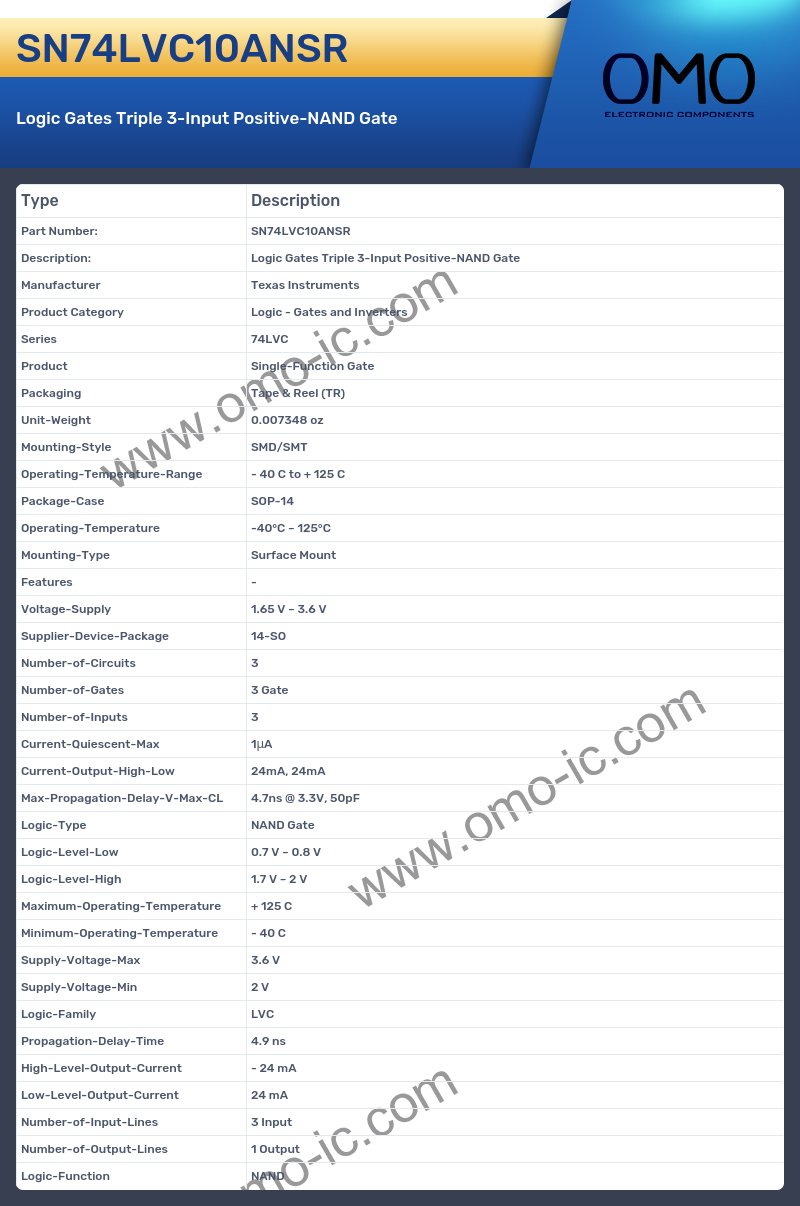

SN74LVC10ANSR Image

SN74LVC10ANSR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LVC
• Product Single-Function Gate
• Packaging Tape & Reel (TR)
• Unit-Weight 0.007348 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case SOP-14
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 1.65 V ~ 3.6 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 3
• Number-of-Gates 3 Gate
• Number-of-Inputs 3
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 4.7ns @ 3.3V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.7 V ~ 0.8 V
• Logic-Level-High 1.7 V ~ 2 V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2 V
• Logic-Family LVC
• Propagation-Delay-Time 4.9 ns
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 3 Input
• Number-of-Output-Lines 1 Output
• Logic-Function NAND
