Mfr. #: | SN74LVC2G240DCTR |
---|---|
Hersteller: | Texas Instruments |
Beschreibung: | Buffers & Line Drivers Dual Buffer/Drive |
Lebenszyklus: | Neu von diesem Hersteller. |
Datenblatt: | SN74LVC2G240DCTR Datenblatt |
Product belongs to the 74LVC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000825 oz SMD/SMT Mounting-Style SSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: 3-State Number of channels: 2 Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: SM8 2 element Buffer/Line Driver, Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V LVC logic type 4.6 ns at 3.3 V 4 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 32 mA 32 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 2 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

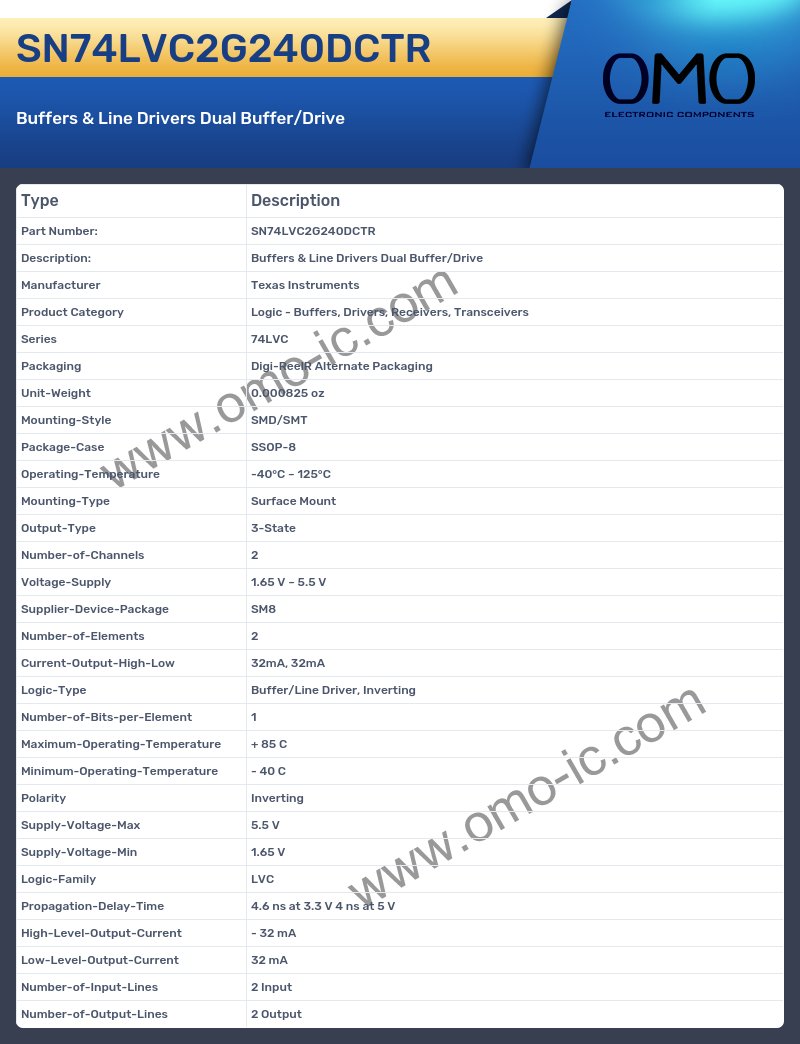

SN74LVC2G240DCTR Specifications
