| Mfr. #: | SN74LVC3G06DCTR |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Buffers & Line Drivers Triple Invert w/ OD |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | SN74LVC3G06DCTR Datenblatt |
Product belongs to the 74LVC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000825 oz SMD/SMT Mounting-Style SSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 3 Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: SM8 3 is 8. 10μA maximum quiescent current. Inverter logic type 0.7 V ~ 0.8 V is a Logic-Level-Low; 1.7 V ~ 2 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 45 C Polarity: Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V LVC logic type 3.4 ns at 3.3 V 2.9 ns at 5 V is 23 microseconds. 32 mA low-level output current Number-of-Input-Lines: 3 Input Number-of-Output-Lines: 3 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

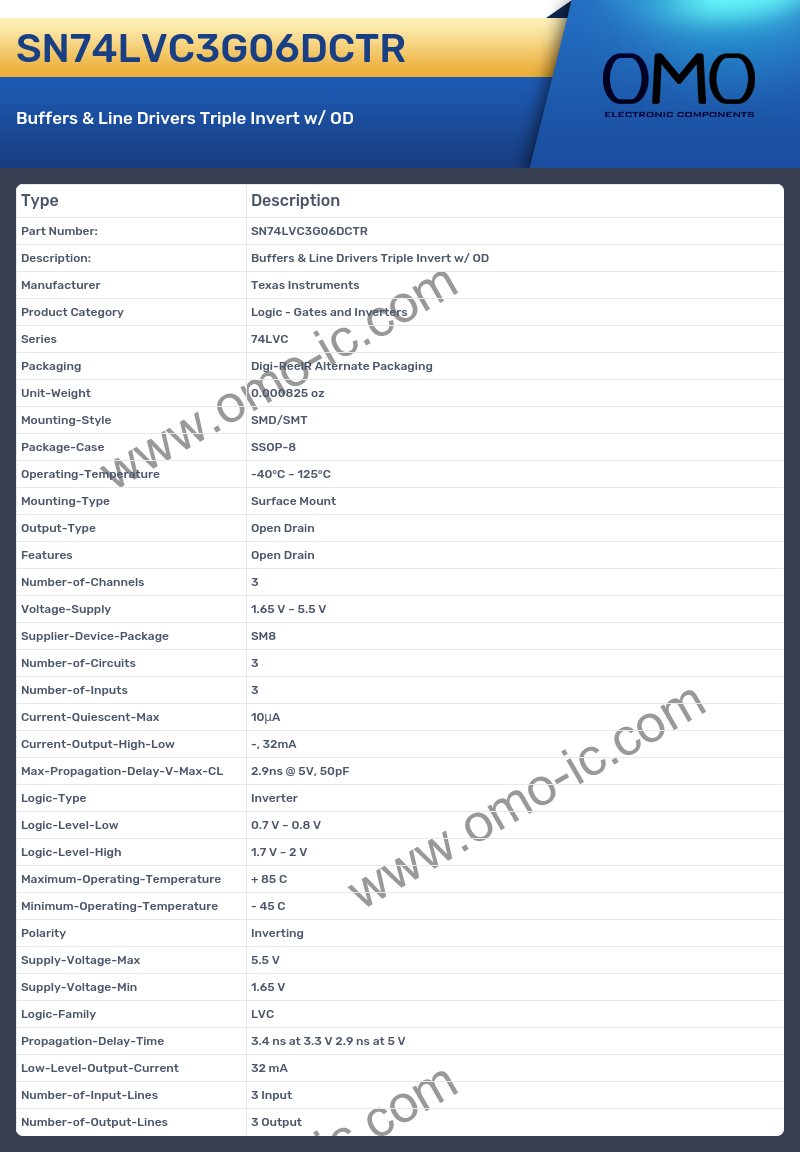

SN74LVC3G06DCTR Specifications
A: What is the Series of the product?
Q: The Series of the product is 74LVC.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.000825 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SSOP-8.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 125°C.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Output-Type?
Q: The product Output-Type is Open Drain.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 3.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 1.65 V ~ 5.5 V.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is SM8.
A: Is the cutoff frequency of the product Number-of-Circuits?
Q: Yes, the product's Number-of-Circuits is indeed 3
A: Is the cutoff frequency of the product Current-Quiescent-Max?
Q: Yes, the product's Current-Quiescent-Max is indeed 10μA
A: Is the cutoff frequency of the product Logic-Type?
Q: Yes, the product's Logic-Type is indeed Inverter
A: Is the cutoff frequency of the product Logic-Level-Low?
Q: Yes, the product's Logic-Level-Low is indeed 0.7 V ~ 0.8 V
A: What is the Logic-Level-High of the product?
Q: The Logic-Level-High of the product is 1.7 V ~ 2 V.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 45 C.
A: Is the cutoff frequency of the product Polarity?
Q: Yes, the product's Polarity is indeed Inverting
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5.5 V
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 1.65 V.
A: What is the Logic-Family of the product?
Q: The Logic-Family of the product is LVC.
A: At what frequency does the Propagation-Delay-Time?
Q: The product Propagation-Delay-Time is 3.4 ns at 3.3 V 2.9 ns at 5 V.
A: What is the Low-Level-Output-Current of the product?
Q: The Low-Level-Output-Current of the product is 32 mA.
A: Is the cutoff frequency of the product Number-of-Input-Lines?
Q: Yes, the product's Number-of-Input-Lines is indeed 3 Input
A: What is the Number-of-Output-Lines of the product?
Q: The Number-of-Output-Lines of the product is 3 Output.
