SN74LVCC3245ADW

SN74LVCC3245ADW Overview

Product belongs to the 74LVCC series. Tube Alternate Packaging is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style SOIC-24 Wide Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Tri-State, Non-Inverted Supplier device package: 24-SOIC 1 is 8. CMOS logic type This product uses Voltage Level as the translator type This product's Bidirectional 8 Channels The product is designed to operate at 2.3 V ~ 3.6 V. The Voltage-VCCB is set at 3 V ~ 5.5 V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 3.6 V 5.5 V Minimum supply voltage is 2.3 V 3 V 74LVC logic type 2.4 ns is 23 microseconds.

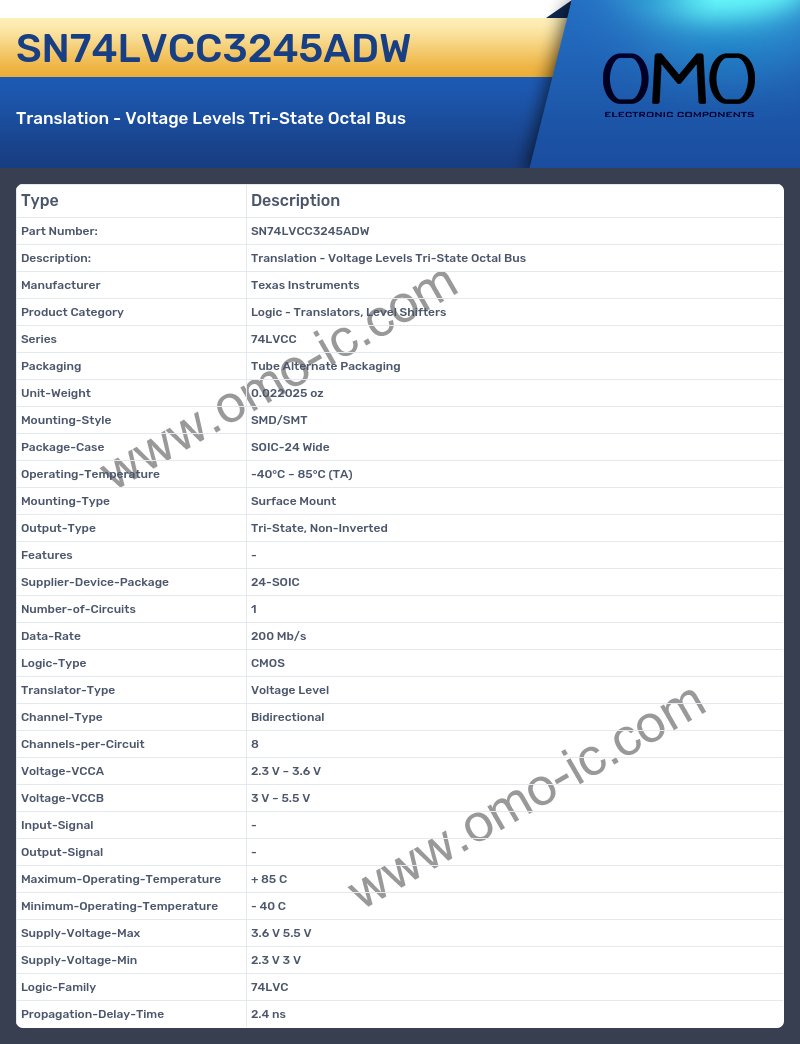

SN74LVCC3245ADW Image

SN74LVCC3245ADW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Translators, Level Shifters
• Series 74LVCC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.022025 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24 Wide
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Tri-State, Non-Inverted
• Features -
• Supplier-Device-Package 24-SOIC
• Number-of-Circuits 1
• Data-Rate 200 Mb/s
• Logic-Type CMOS
• Translator-Type Voltage Level
• Channel-Type Bidirectional
• Channels-per-Circuit 8
• Voltage-VCCA 2.3 V ~ 3.6 V
• Voltage-VCCB 3 V ~ 5.5 V
• Input-Signal -
• Output-Signal -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 3.6 V 5.5 V
• Supply-Voltage-Min 2.3 V 3 V
• Logic-Family 74LVC
• Propagation-Delay-Time 2.4 ns
