SN74S373DW

SN74S373DW Overview

Product belongs to the 74S series. Tube is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Tri-State Number of channels: 8 Channels Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 20-SOIC 8 Circuit is 8. Circuit type: 1899/12/30 8:08:00 D-Type Transparent Latch logic type 1 Independent Circuit The 7ns Delay-Time-Propagation. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 160 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V S logic type 12 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 6.5 mA 32 mA low-level output current Number-of-Input-Lines: 8 Line Number-of-Output-Lines: 8 Line

SN74S373DW Image

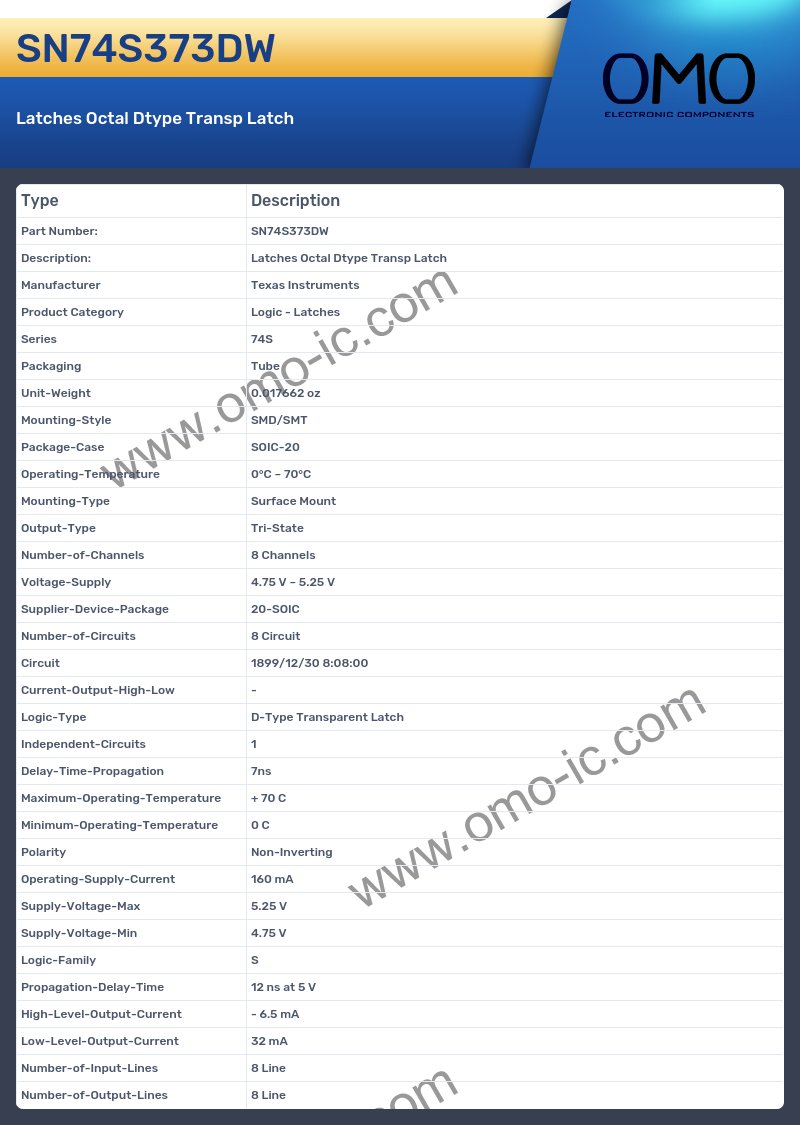

SN74S373DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Latches
• Series 74S
• Packaging Tube
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Tri-State
• Number-of-Channels 8 Channels
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 8 Circuit
• Circuit 1899/12/30 8:08:00
• Current-Output-High-Low -
• Logic-Type D-Type Transparent Latch
• Independent-Circuits 1
• Delay-Time-Propagation 7ns
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Operating-Supply-Current 160 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family S
• Propagation-Delay-Time 12 ns at 5 V
• High-Level-Output-Current - 6.5 mA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 8 Line
• Number-of-Output-Lines 8 Line
