SSM2019BNZ

SSM2019BNZ Overview

Product belongs to the SSM2019 series. This product is categorized as Microphone Preamplifiers Type: Class AB Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: 1-Channel (Mono) Number of channels: 1 Channel Voltage Supply Range: 10 V ~ 36 V, ±5 V ~ 18 V Supplier device package: 8-PDIP Maximum Output Power of - for 1 channel The device offers a 70 dB of 26dB. Class-AB is the class of this product. The amplifier is of General Purpose Microphone Preamplifier type. Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 4.6 mA is 92 nA. Maximum supply voltage of 18 V Minimum supply voltage is 5 V Input bias current of 10 uA The 0.05 mV. The 124 dB. The CMRR-Common-Mode-Rejection-Ratio is 110 dB. This product has a 0.017 % for clear and precise audio. 2 kOhms audio load impedance Single supply type Differential input signal type Analog is the output signal type.

SSM2019BNZ Image

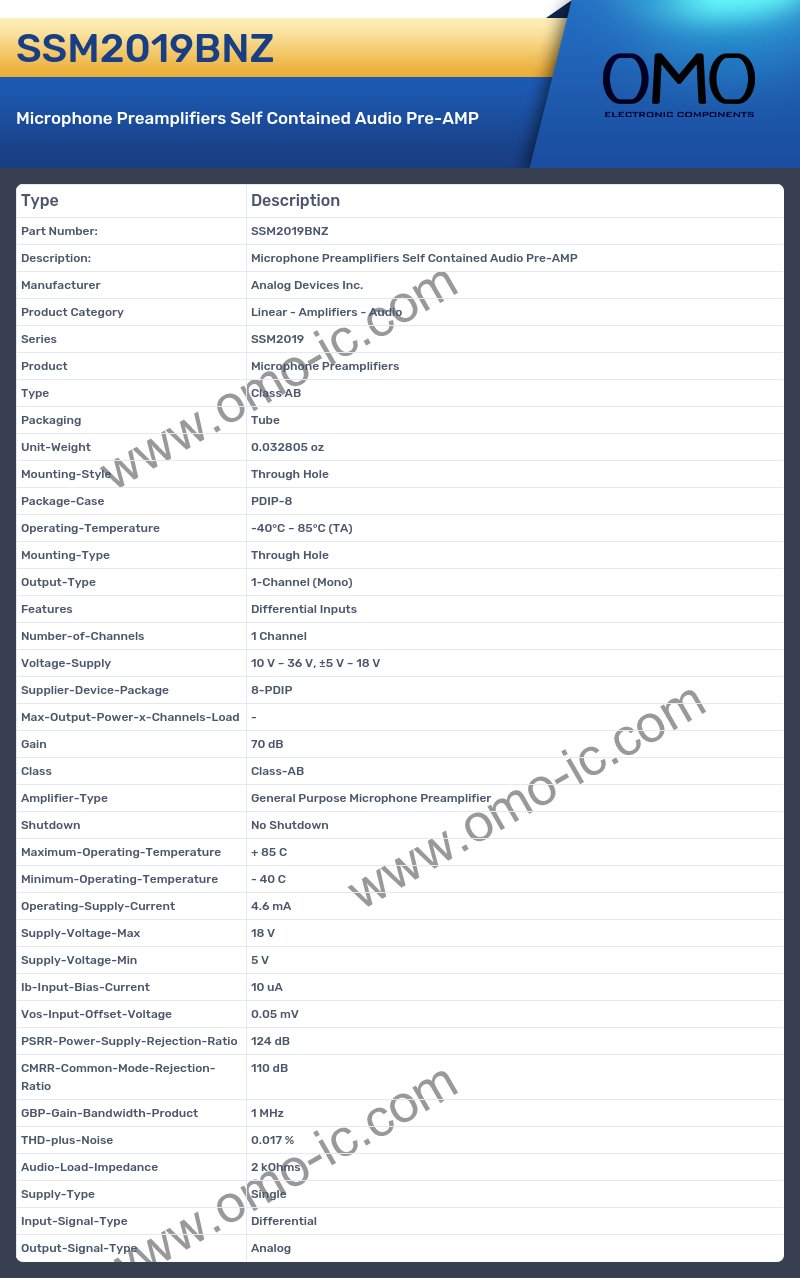

SSM2019BNZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Audio
• Series SSM2019
• Product Microphone Preamplifiers
• Type Class AB
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type 1-Channel (Mono)
• Features Differential Inputs
• Number-of-Channels 1 Channel
• Voltage-Supply 10 V ~ 36 V, ±5 V ~ 18 V
• Supplier-Device-Package 8-PDIP
• Max-Output-Power-x-Channels-Load -
• Gain 70 dB
• Class Class-AB
• Amplifier-Type General Purpose Microphone Preamplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 4.6 mA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 5 V
• Ib-Input-Bias-Current 10 uA
• Vos-Input-Offset-Voltage 0.05 mV
• PSRR-Power-Supply-Rejection-Ratio 124 dB
• CMRR-Common-Mode-Rejection-Ratio 110 dB
• GBP-Gain-Bandwidth-Product 1 MHz
• THD-plus-Noise 0.017 %
• Audio-Load-Impedance 2 kOhms
• Supply-Type Single
• Input-Signal-Type Differential
• Output-Signal-Type Analog
