STD150N3LLH6

STD150N3LLH6 Overview

Product belongs to the DeepGATE, STripFET VI series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 30V This product has an 3700pF @ 25V value of 300pF @ 25V. This product's Standard. 80A (Tc) continuous drain-ID current at 25°C; This product has an 2.8 mOhm @ 40A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 110 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 46 ns of 16 ns. This product has a 18 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. The 2.8 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 75 ns This product has a 17 ns. This product operates in Enhancement channel mode for optimal performance.

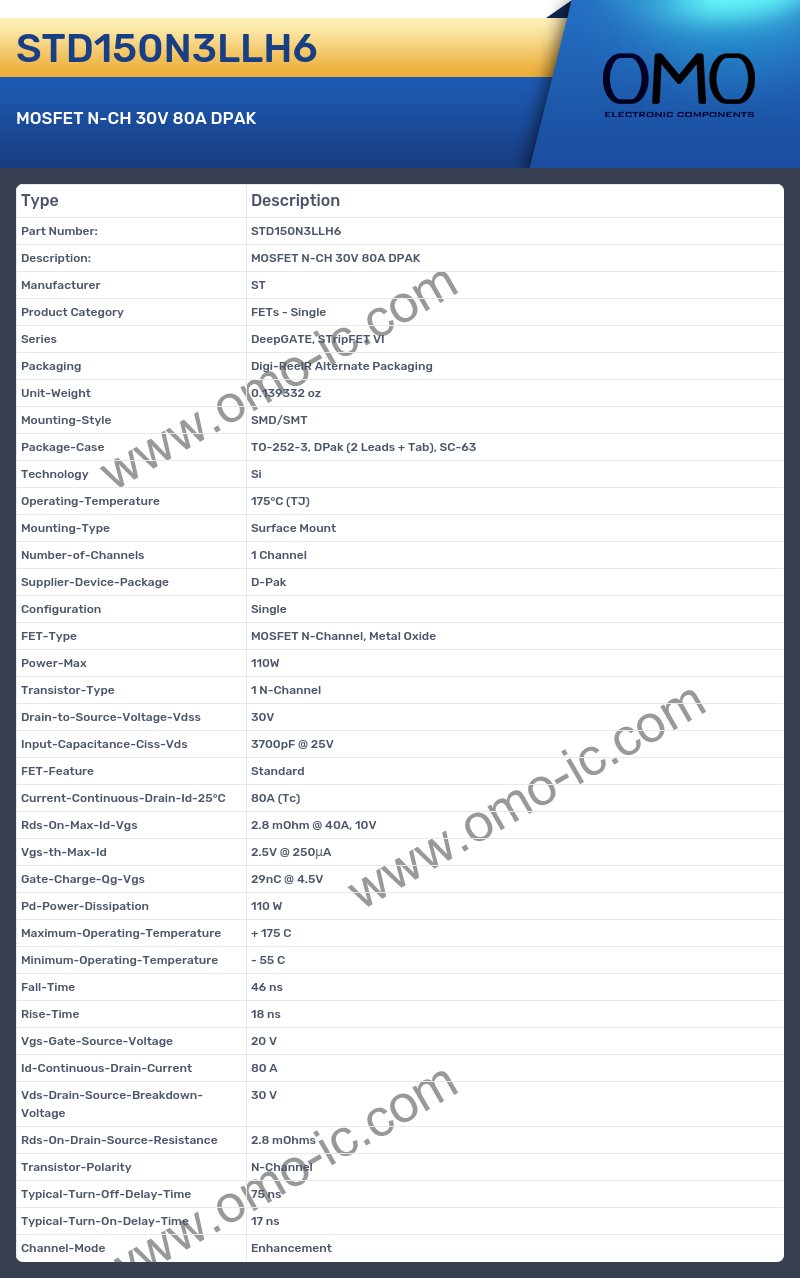

STD150N3LLH6 Image

STD150N3LLH6 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series DeepGATE, STripFET VI
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Operating-Temperature 175°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package D-Pak
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 110W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 3700pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 80A (Tc)
• Rds-On-Max-Id-Vgs 2.8 mOhm @ 40A, 10V
• Vgs-th-Max-Id 2.5V @ 250μA
• Gate-Charge-Qg-Vgs 29nC @ 4.5V
• Pd-Power-Dissipation 110 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 46 ns
• Rise-Time 18 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 80 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Rds-On-Drain-Source-Resistance 2.8 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 75 ns
• Typical-Turn-On-Delay-Time 17 ns
• Channel-Mode Enhancement
