| Mfr. #: | STGB40V60F |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IGBT Transistors IGBT & Power Bipola |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STGB40V60F Datenblatt |
Product belongs to the 600-650V IGBTs series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 160A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 40A. 52ns/208ns Td-on-off at 25°C; Operating temperature: 400V, 40A, 10 Ohm, 15V Power-off control: 283 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.8 V 80 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

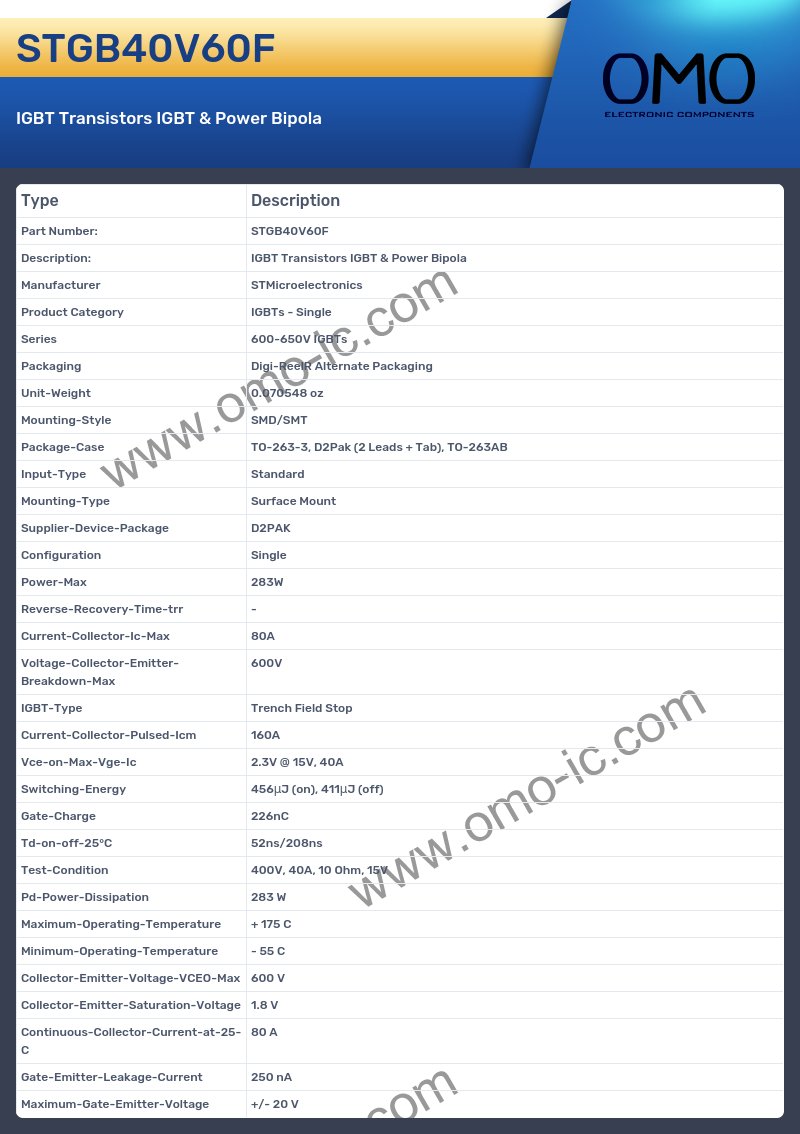

STGB40V60F Specifications
A: At what frequency does the Series?
Q: The product Series is 600-650V IGBTs.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.070548 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-263-3, D2Pak (2 Leads + Tab), TO-263AB.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is D2PAK.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 80A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 600V.
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 160A.
A: At what frequency does the Vce-on-Max-Vge-Ic?
Q: The product Vce-on-Max-Vge-Ic is 2.3V @ 15V, 40A.
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 52ns/208ns.
A: Is the cutoff frequency of the product Test-Condition?
Q: Yes, the product's Test-Condition is indeed 400V, 40A, 10 Ohm, 15V
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 283 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 175 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 600 V
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 1.8 V.
A: What is the Continuous-Collector-Current-at-25-C of the product?
Q: The Continuous-Collector-Current-at-25-C of the product is 80 A.
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed +/- 20 V
