| Mfr. #: | STGD14NC60KT4 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IGBT Transistors N-channel MOSFET |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STGD14NC60KT4 Datenblatt |
Product belongs to the PowerMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Maximum current collector Ic is 25A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at -. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 7A. 22.5ns/116ns Td-on-off at 25°C; Operating temperature: 390V, 7A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 25 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

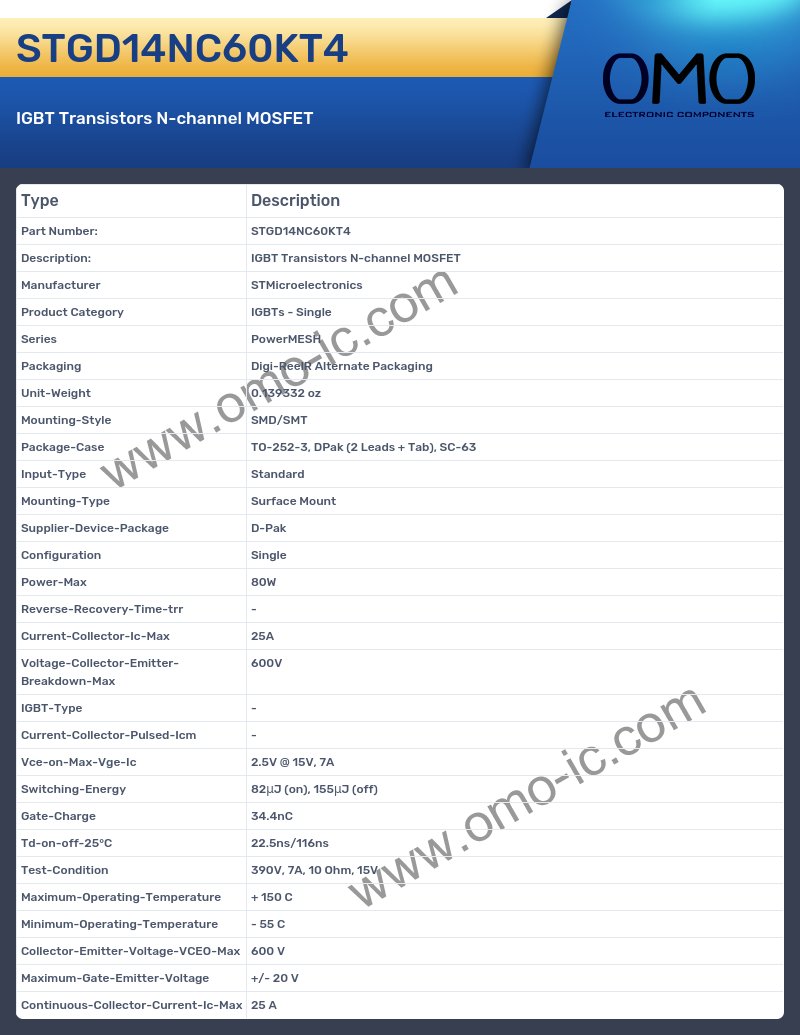

STGD14NC60KT4 Specifications
A: At what frequency does the Series?
Q: The product Series is PowerMESH.
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.139332 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-252-3, DPak (2 Leads + Tab), SC-63.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is D-Pak.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 25A
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 600V.
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed -
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.5V @ 15V, 7A.
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 22.5ns/116ns.
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 390V, 7A, 10 Ohm, 15V.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 600 V.
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed +/- 20 V
A: What is the Continuous-Collector-Current-Ic-Max of the product?
Q: The Continuous-Collector-Current-Ic-Max of the product is 25 A.
