| Mfr. #: | STGDL6NC60DIT4 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IGBT Transistors 600V 6A hyper fast IGBT |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STGDL6NC60DIT4 Datenblatt |
Product belongs to the PowerMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Maximum current collector Ic is 13A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 18A. The Vce-on-Max-Vge-Ic is rated at 2.9V @ 15V, 3A. 6.7ns/46ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 13 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

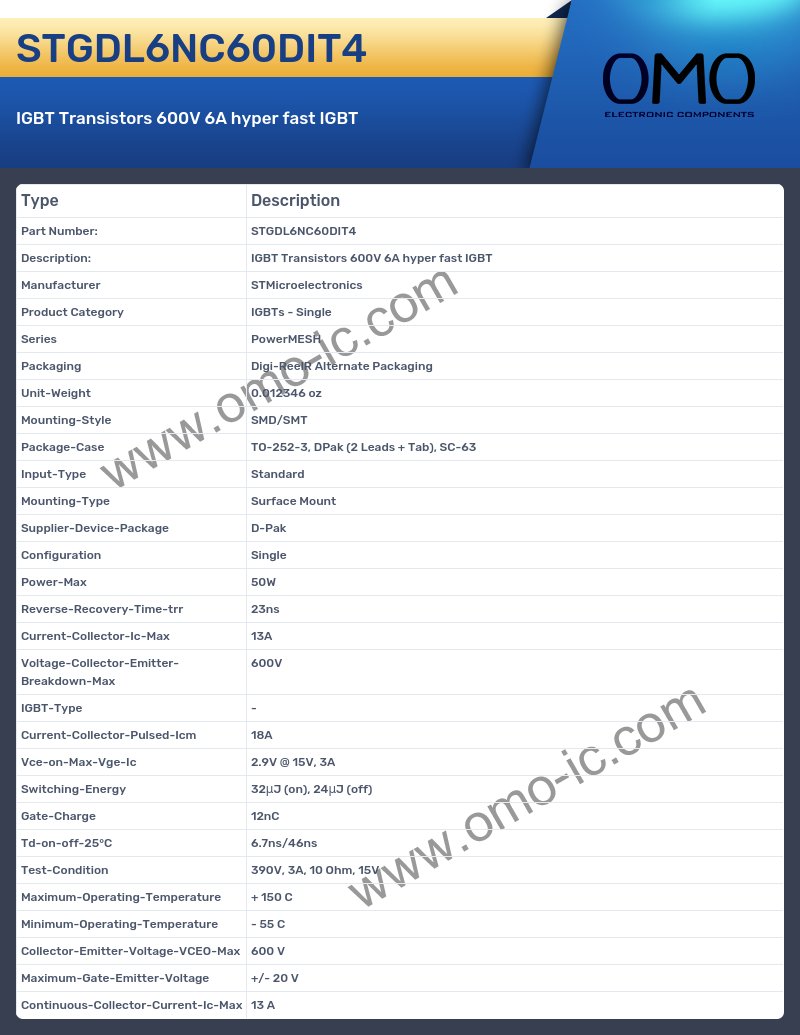

STGDL6NC60DIT4 Specifications
A: What is the Series of the product?
Q: The Series of the product is PowerMESH.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.012346 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-252-3, DPak (2 Leads + Tab), SC-63.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is D-Pak.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 13A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is 18A.
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.9V @ 15V, 3A.
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 6.7ns/46ns.
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 390V, 3A, 10 Ohm, 15V.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 600 V.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is +/- 20 V.
A: What is the Continuous-Collector-Current-Ic-Max of the product?
Q: The Continuous-Collector-Current-Ic-Max of the product is 13 A.
