STGP12NB60K

STGP12NB60K Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Maximum current collector Ic is 30A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 60A. The Vce-on-Max-Vge-Ic is rated at 2.8V @ 15V, 12A. 25ns/96ns Td-on-off at 25°C; Operating temperature: 480V, 12A, 10 Ohm, 15V

STGP12NB60K Image

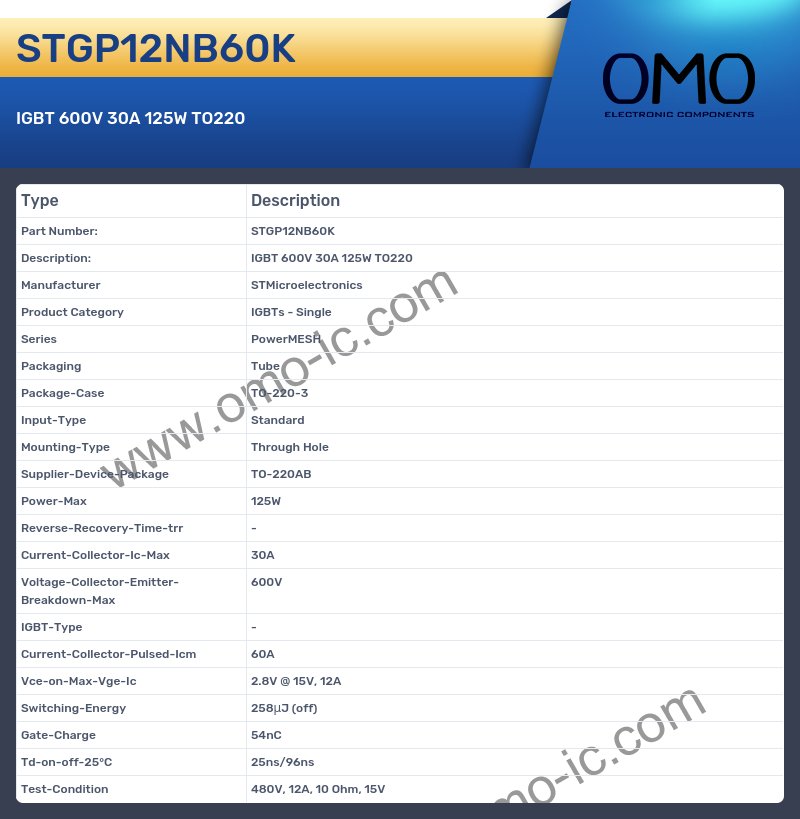

STGP12NB60K Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Power-Max 125W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 30A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 60A
• Vce-on-Max-Vge-Ic 2.8V @ 15V, 12A
• Switching-Energy 258μJ (off)
• Gate-Charge 54nC
• Td-on-off-25°C 25ns/96ns
• Test-Condition 480V, 12A, 10 Ohm, 15V
