| Mfr. #: | STGP20NC60V |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IGBT Transistors N-Ch 600 Volt 30 Amp |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STGP20NC60V Datenblatt |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 100A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 20A. 31ns/100ns Td-on-off at 25°C; Operating temperature: 390V, 20A, 3.3 Ohm, 15V Power-off control: 200 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.5 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 60 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

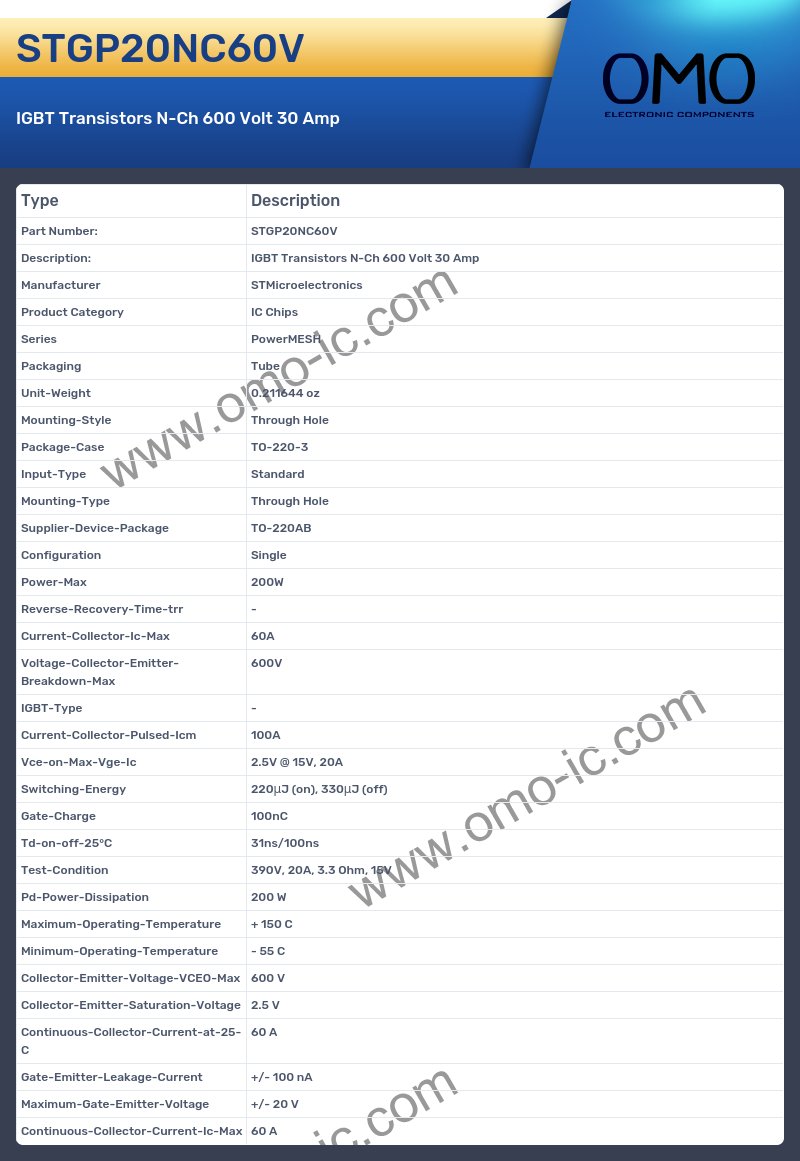

STGP20NC60V Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed PowerMESH
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.211644 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-220AB
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 60A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is 100A.
A: At what frequency does the Vce-on-Max-Vge-Ic?
Q: The product Vce-on-Max-Vge-Ic is 2.5V @ 15V, 20A.
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is 31ns/100ns.
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 390V, 20A, 3.3 Ohm, 15V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 200 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 600 V.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.5 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-at-25-C?
Q: Yes, the product's Continuous-Collector-Current-at-25-C is indeed 60 A
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed +/- 20 V
A: What is the Continuous-Collector-Current-Ic-Max of the product?
Q: The Continuous-Collector-Current-Ic-Max of the product is 60 A.
