| Mfr. #: | STGP30V60DF |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IGBT Transistors 600V 30A High Speed Trench Gate IGBT |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STGP30V60DF Datenblatt |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 30A. 45ns/189ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 10 Ohm, 15V Power-off control: 258 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.35 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

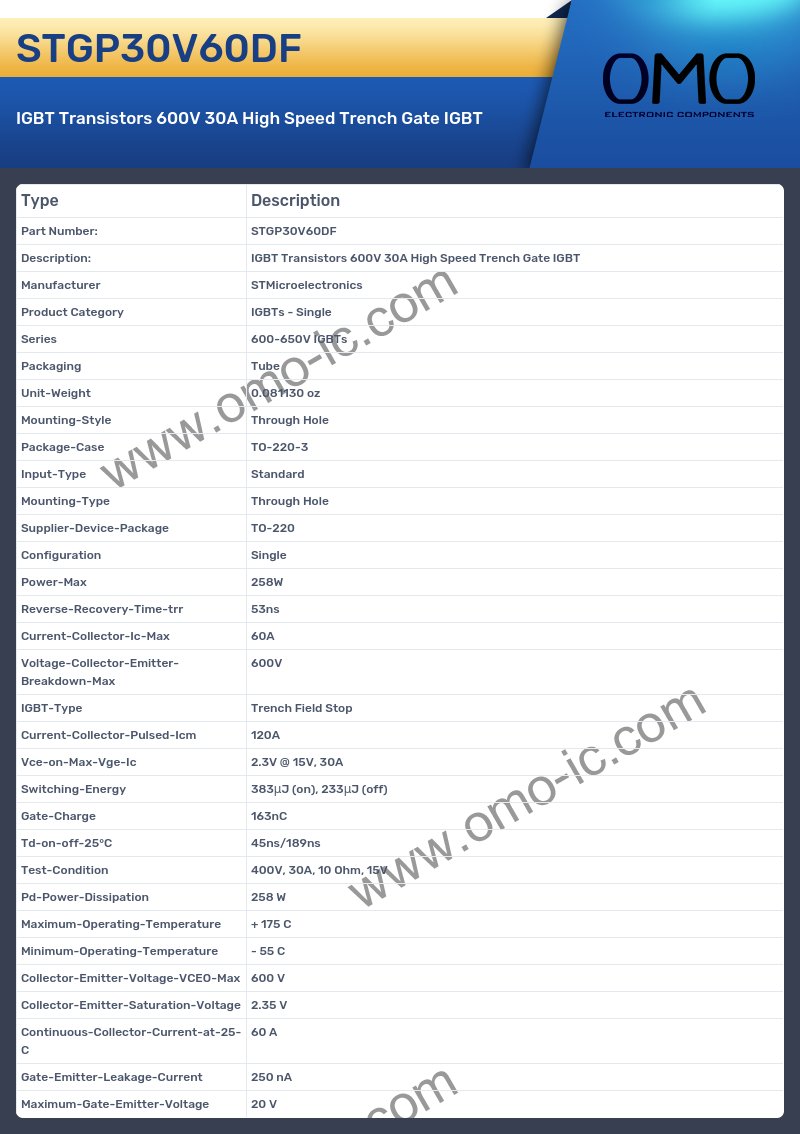

STGP30V60DF Specifications
A: What is the Series of the product?
Q: The Series of the product is 600-650V IGBTs.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.081130 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3
A: At what frequency does the Input-Type?
Q: The product Input-Type is Standard.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-220.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 60A
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is 120A.
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.3V @ 15V, 30A
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed 45ns/189ns
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 400V, 30A, 10 Ohm, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 258 W
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 600 V.
A: Is the cutoff frequency of the product Collector-Emitter-Saturation-Voltage?
Q: Yes, the product's Collector-Emitter-Saturation-Voltage is indeed 2.35 V
A: Is the cutoff frequency of the product Continuous-Collector-Current-at-25-C?
Q: Yes, the product's Continuous-Collector-Current-at-25-C is indeed 60 A
A: At what frequency does the Maximum-Gate-Emitter-Voltage?
Q: The product Maximum-Gate-Emitter-Voltage is 20 V.
