| Mfr. #: | STGP7NC60HD |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IGBT 600V 25A 80W TO220 |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STGP7NC60HD Datenblatt |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Configuration Single Maximum current collector Ic is 25A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 50A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 7A. 18.5ns/72ns Td-on-off at 25°C; Operating temperature: 390V, 7A, 10 Ohm, 15V Power-off control: 80 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.5 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 25 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

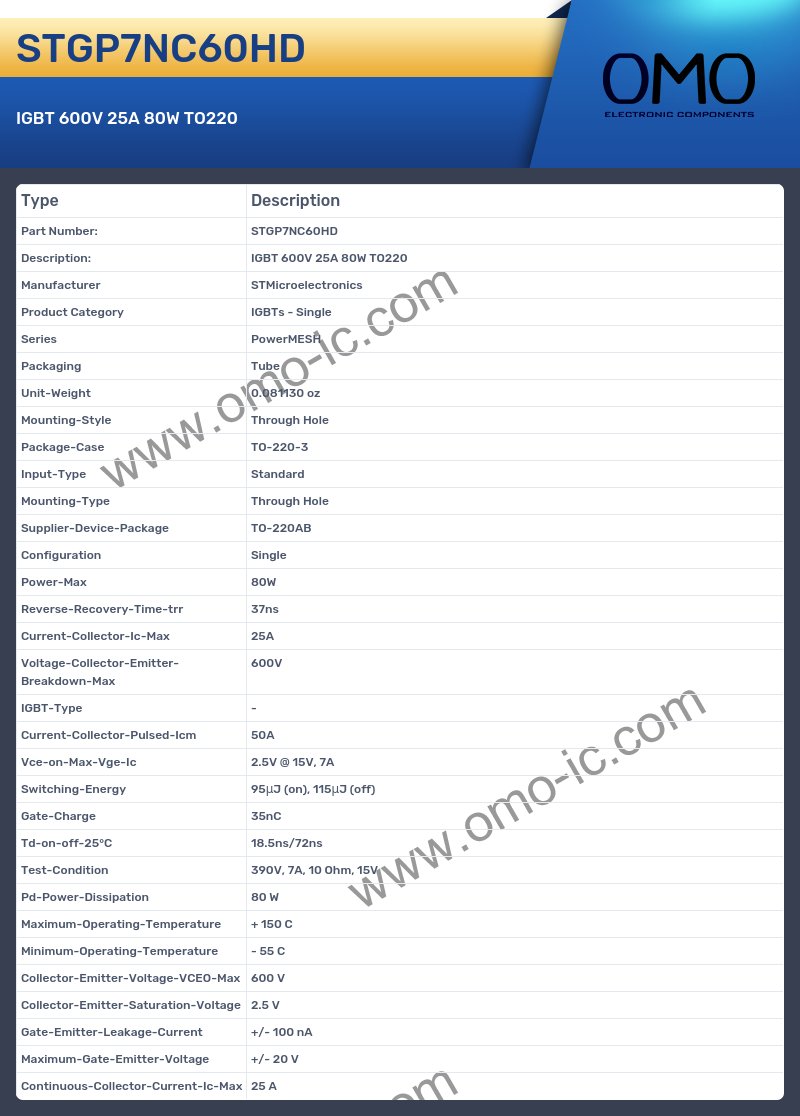

STGP7NC60HD Specifications
A: What is the Series of the product?
Q: The Series of the product is PowerMESH.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.081130 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-220-3.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-220AB.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 25A
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 600V.
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 50A.
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.5V @ 15V, 7A
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is 18.5ns/72ns.
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 390V, 7A, 10 Ohm, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 80 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 600 V.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.5 V.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is +/- 20 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-Ic-Max?
Q: Yes, the product's Continuous-Collector-Current-Ic-Max is indeed 25 A
