STGW45HF60WD

STGW45HF60WD Overview

Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Maximum current collector Ic is 70A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 150A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 30A. 30ns/145ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 6.8 Ohm, 15V Power-off control: 250 W Saturation voltage between collector and emitter is 1.9 V 70 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V

STGW45HF60WD Image

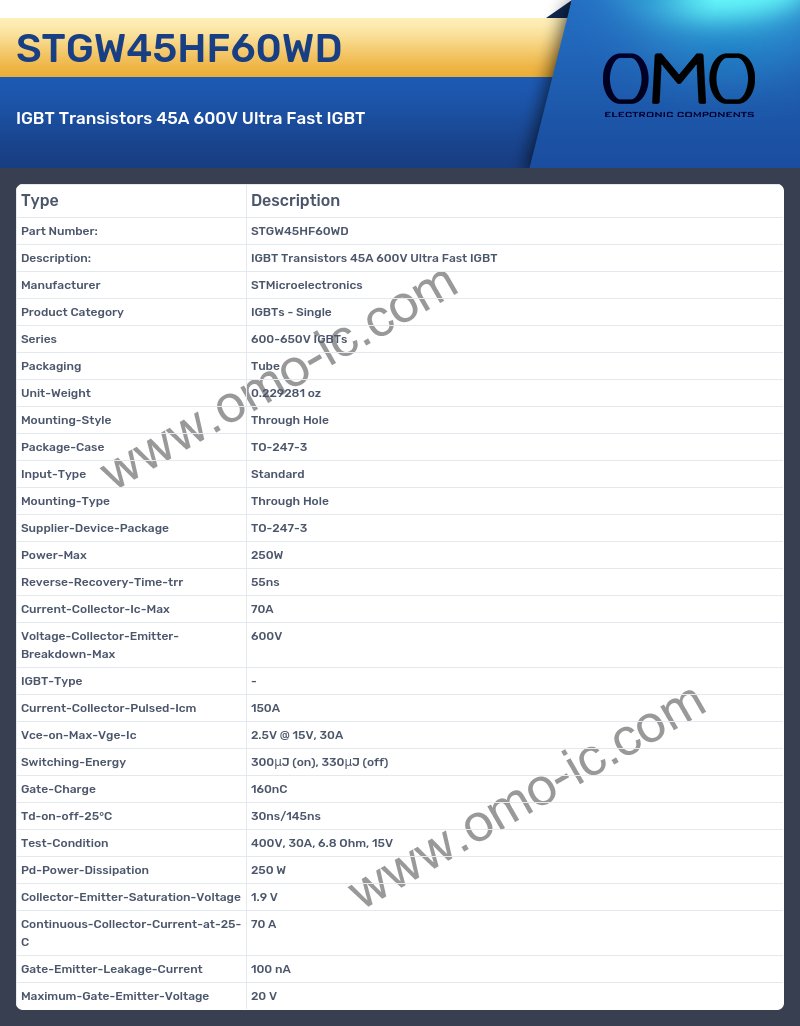

STGW45HF60WD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Tube
• Unit-Weight 0.229281 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247-3
• Power-Max 250W
• Reverse-Recovery-Time-trr 55ns
• Current-Collector-Ic-Max 70A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 150A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 30A
• Switching-Energy 300μJ (on), 330μJ (off)
• Gate-Charge 160nC
• Td-on-off-25°C 30ns/145ns
• Test-Condition 400V, 30A, 6.8 Ohm, 15V
• Pd-Power-Dissipation 250 W
• Collector-Emitter-Saturation-Voltage 1.9 V
• Continuous-Collector-Current-at-25-C 70 A
• Gate-Emitter-Leakage-Current 100 nA
• Maximum-Gate-Emitter-Voltage 20 V
