STGWA35HF60WDI

STGWA35HF60WDI Overview

Product belongs to the - series. Tube is the packaging method for this product TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Maximum current collector Ic is 70A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 150A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 20A. 30ns/175ns Td-on-off at 25°C; Operating temperature: 390V, 20A, 10 Ohm, 15V

STGWA35HF60WDI Image

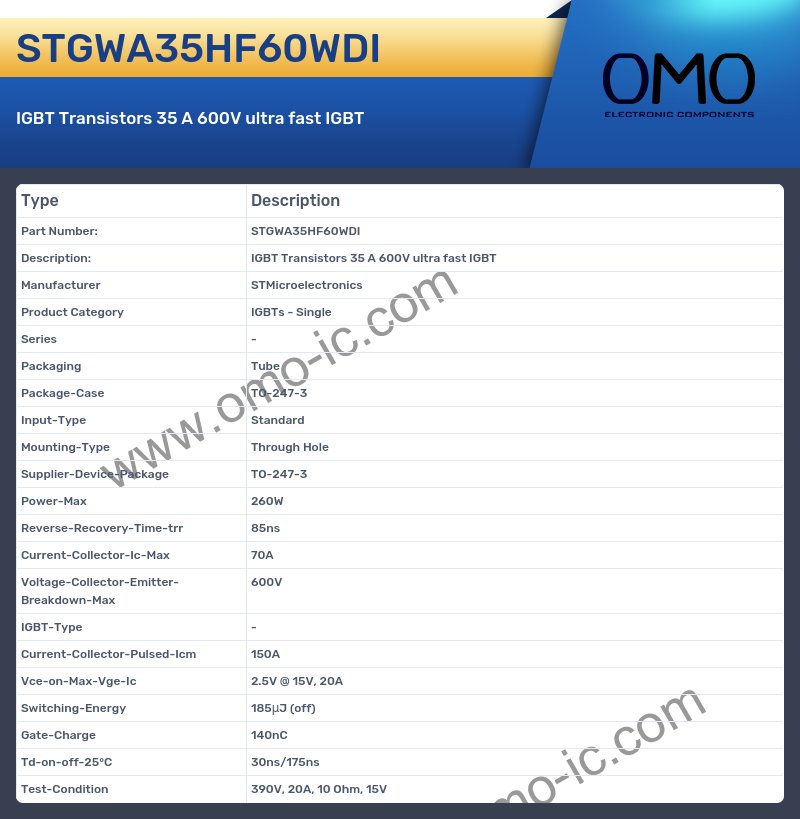

STGWA35HF60WDI Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series -
• Packaging Tube
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247-3
• Power-Max 260W
• Reverse-Recovery-Time-trr 85ns
• Current-Collector-Ic-Max 70A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 150A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 20A
• Switching-Energy 185μJ (off)
• Gate-Charge 140nC
• Td-on-off-25°C 30ns/175ns
• Test-Condition 390V, 20A, 10 Ohm, 15V
