STGWA45HF60WDI

STGWA45HF60WDI Overview

Product belongs to the - series. Tube is the packaging method for this product TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 150A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 30A. -/145ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 4.7 Ohm, 15V

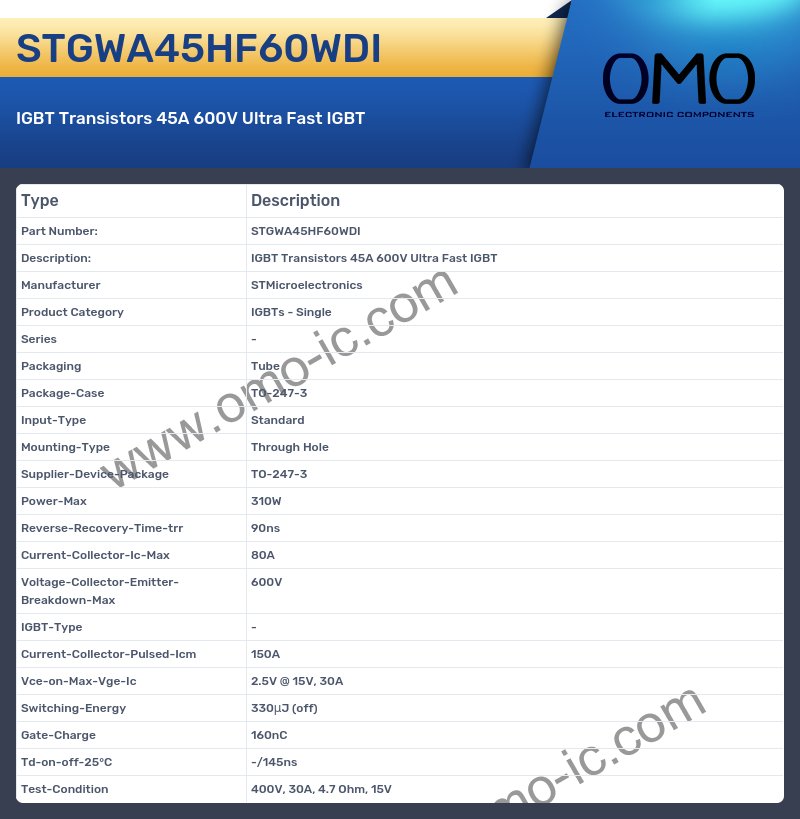

STGWA45HF60WDI Image

STGWA45HF60WDI Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series -
• Packaging Tube
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247-3
• Power-Max 310W
• Reverse-Recovery-Time-trr 90ns
• Current-Collector-Ic-Max 80A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 150A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 30A
• Switching-Energy 330μJ (off)
• Gate-Charge 160nC
• Td-on-off-25°C -/145ns
• Test-Condition 400V, 30A, 4.7 Ohm, 15V
