| Mfr. #: | STGWT30V60DF |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IGBT Transistors 600V 30A High Speed Trench Gate IGBT |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STGWT30V60DF Datenblatt |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.238311 oz Through Hole Mounting-Style TO-3P-3, SC-65-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3P Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 30A. 45ns/189ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 10 Ohm, 15V Power-off control: 258 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.35 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

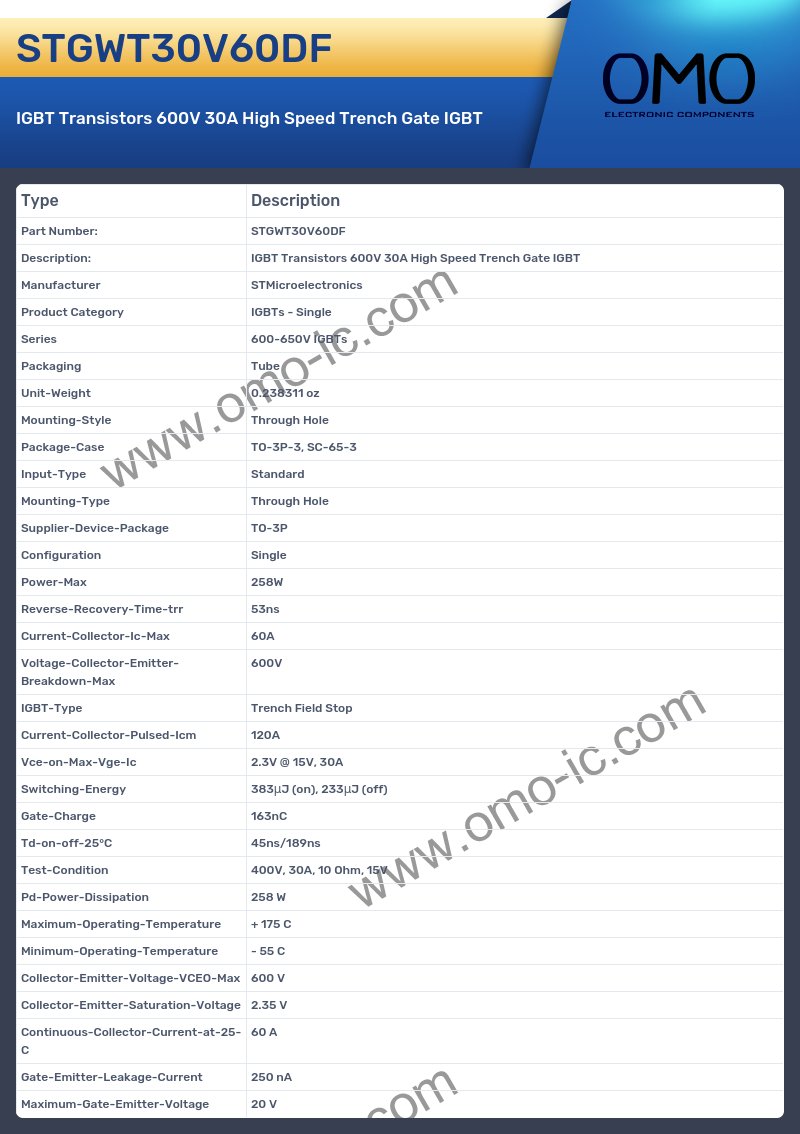

STGWT30V60DF Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 600-650V IGBTs
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.238311 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-3P-3, SC-65-3.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-3P.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 60A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 120A
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.3V @ 15V, 30A
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 45ns/189ns.
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 400V, 30A, 10 Ohm, 15V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 258 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 600 V
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is 2.35 V.
A: At what frequency does the Continuous-Collector-Current-at-25-C?
Q: The product Continuous-Collector-Current-at-25-C is 60 A.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is 20 V.
