STMPS2161STR Overview

Product belongs to the STMPS2161 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: SOT-23-5 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 90 mOhm. Voltage-Load range is 2.7 V ~ 5.5 V. Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 130 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. Output current: 1 A Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Max on-resistance of 0.12 Ohms Maximum off time: 10 ms Maximum on-time: 5 ms

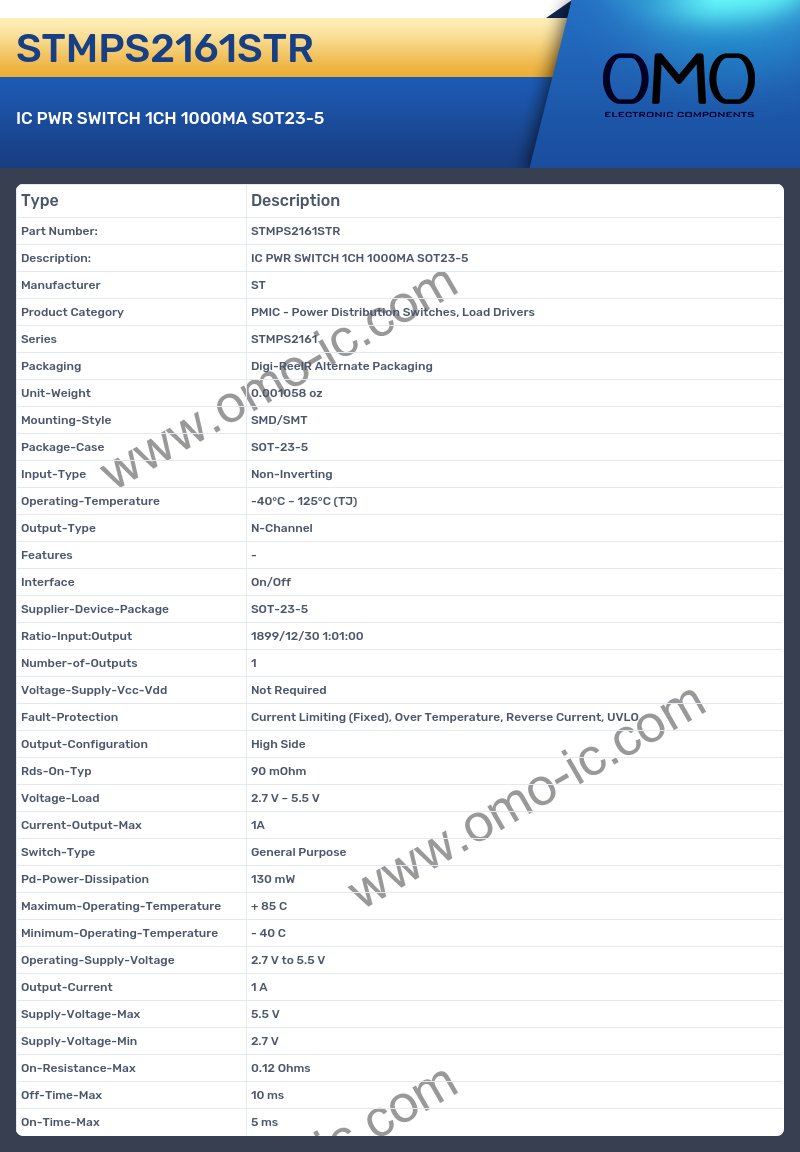

STMPS2161STR Image

STMPS2161STR Specifications

• Manufacturer ST
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series STMPS2161
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package SOT-23-5
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
• Output-Configuration High Side
• Rds-On-Typ 90 mOhm
• Voltage-Load 2.7 V ~ 5.5 V
• Current-Output-Max 1A
• Switch-Type General Purpose
• Pd-Power-Dissipation 130 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Output-Current 1 A
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• On-Resistance-Max 0.12 Ohms
• Off-Time-Max 10 ms
• On-Time-Max 5 ms
