STN1NF20

STN1NF20 Overview

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product Weight of 0.008826 oz SMD/SMT Mounting-Style SOT-223-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 2 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 12.4 ns of 16 ns. This product has a 5.6 ns of 16 ns. The ID of continuous drain current is 1 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 200 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 1.5 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 5.7 nC.

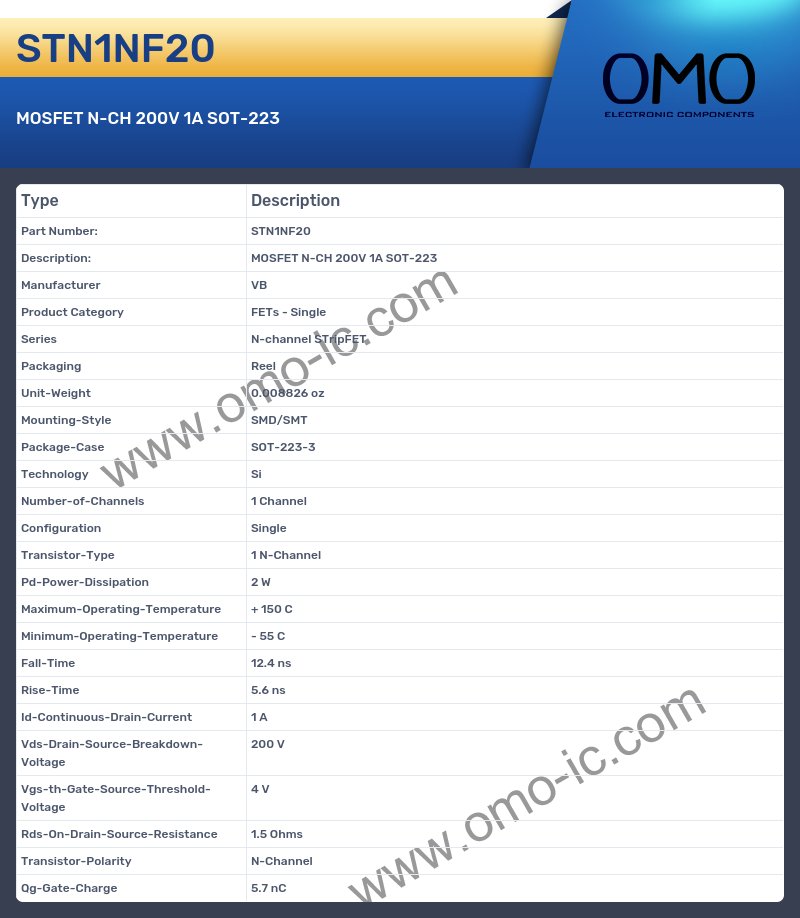

STN1NF20 Image

STN1NF20 Specifications

• Manufacturer VB
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Reel
• Unit-Weight 0.008826 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 2 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 12.4 ns
• Rise-Time 5.6 ns
• Id-Continuous-Drain-Current 1 A
• Vds-Drain-Source-Breakdown-Voltage 200 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 1.5 Ohms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 5.7 nC
