| Mfr. #: | STN4NF20L |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | MOSFET N-CH 200V 1A SOT-223 |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STN4NF20L Datenblatt |
Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008826 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: SOT-223 Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 200V This product has an 150pF @ 25V value of 300pF @ 25V. This product's Standard. 1A (Tc) continuous drain-ID current at 25°C; This product has an 1.5 Ohm @ 500mA, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 3.3 W Maximum operating temperature of + 150 C The ID of continuous drain current is 1 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 200 V. The 1.5 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

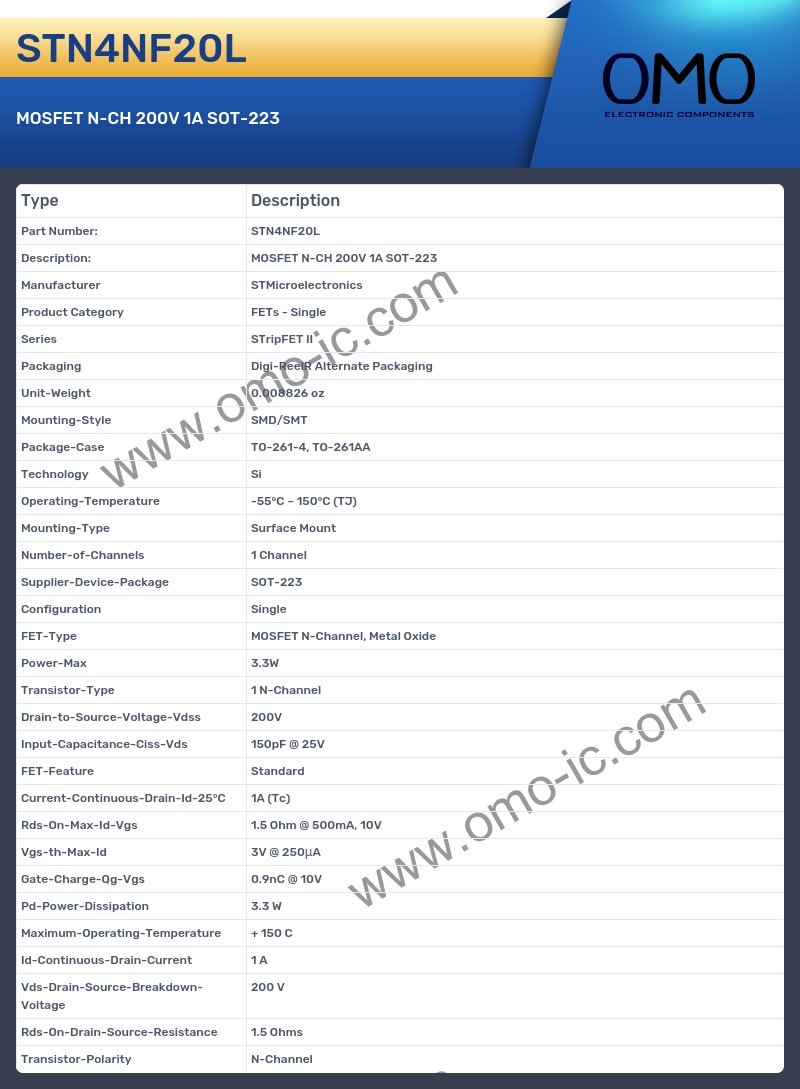

STN4NF20L Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed STripFET II
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.008826 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-261-4, TO-261AA.
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 150°C (TJ)
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is SOT-223.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the FET-Type of the product?
Q: The FET-Type of the product is MOSFET N-Channel, Metal Oxide.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 N-Channel.
A: Is the cutoff frequency of the product Drain-to-Source-Voltage-Vdss?
Q: Yes, the product's Drain-to-Source-Voltage-Vdss is indeed 200V
A: What is the Input-Capacitance-Ciss-Vds of the product?
Q: The Input-Capacitance-Ciss-Vds of the product is 150pF @ 25V.
A: Is the cutoff frequency of the product FET-Feature?
Q: Yes, the product's FET-Feature is indeed Standard
A: What is the Current-Continuous-Drain-Id-25°C of the product?
Q: The Current-Continuous-Drain-Id-25°C of the product is 1A (Tc).
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 1.5 Ohm @ 500mA, 10V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 3.3 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 1 A.
A: At what frequency does the Vds-Drain-Source-Breakdown-Voltage?
Q: The product Vds-Drain-Source-Breakdown-Voltage is 200 V.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 1.5 Ohms.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed N-Channel
