| Mfr. #: | STN715 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | Bipolar Transistors - BJT NPN Medium Powe |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STN715 Datenblatt |
Product belongs to the STN715 series. Reel is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style SOT-223 Configuration Single Power-off control: 1.6 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 80 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 0.5 V The 140 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 1.5 A Gain-Bandwidth-Product: 50 MHz This product is capable of handling a 1.5 A continuous collector current. Minimum hfe for DC collector-base gain is 140.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

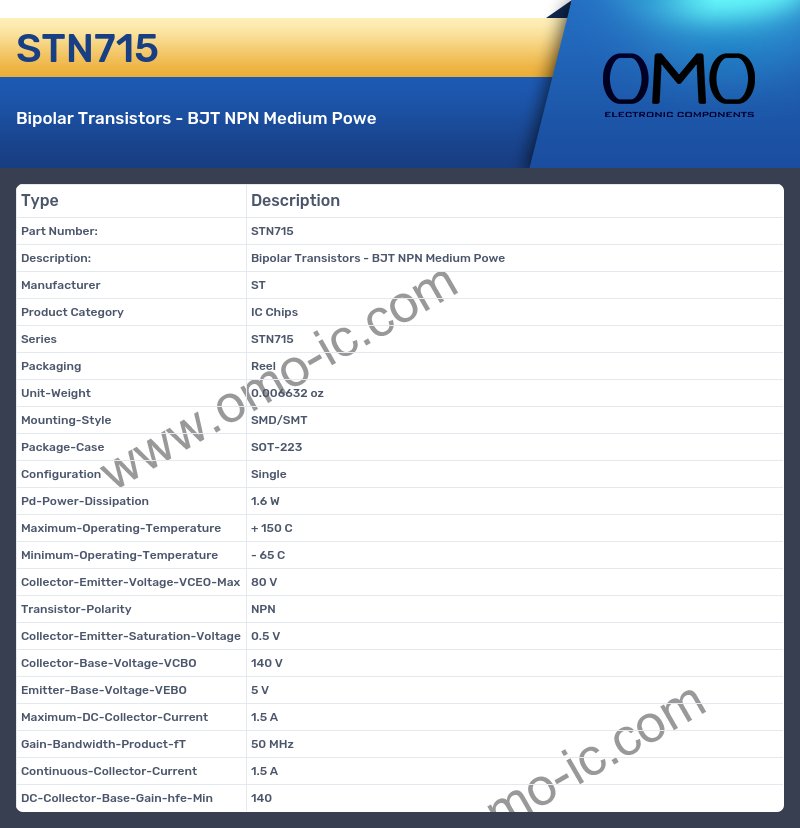

STN715 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed STN715
A: What is the Packaging of the product?
Q: The Packaging of the product is Reel.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.006632 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOT-223
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 1.6 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 65 C
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 80 V.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed NPN
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 0.5 V.
A: Is the cutoff frequency of the product Collector-Base-Voltage-VCBO?
Q: Yes, the product's Collector-Base-Voltage-VCBO is indeed 140 V
A: At what frequency does the Emitter-Base-Voltage-VEBO?
Q: The product Emitter-Base-Voltage-VEBO is 5 V.
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is 1.5 A.
A: What is the Gain-Bandwidth-Product-fT of the product?
Q: The Gain-Bandwidth-Product-fT of the product is 50 MHz.
A: At what frequency does the Continuous-Collector-Current?
Q: The product Continuous-Collector-Current is 1.5 A.
A: At what frequency does the DC-Collector-Base-Gain-hfe-Min?
Q: The product DC-Collector-Base-Gain-hfe-Min is 140.
